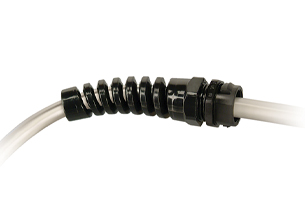

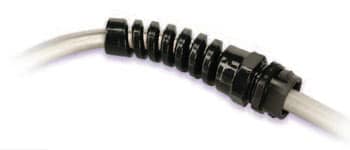

Heyco® Snap-In Cordgrip Strain Reliefs – Pigtail™

• Integral nylon spring eases the cable into a lazy bend; prevents kinking and assures longest cable and product life.
• Smooth, rounded interior edges for ease of installation.
• Limited intrusion into enclosure where access is tight.

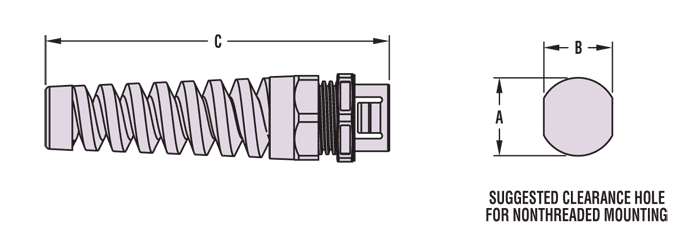

• Rotation prevented when used in “Double D” mounting holes.
• Easy to install-no tools required.
• Ratchet design of sealing nut assembly provides superior anti-vibration and ensures a firm grip on the cable.
• Available in multiple sizes for cable diameters ranging from .210″ (5,3 mm) to 1.560″ (39,6 mm).
• We recommend using the fitting with the smallest maximum diameter that will fit your application.
• Meet UL strain relief requirements without bending or kinking the cable.
• Though similar in appearance and function to Heyco-Tite Liquid Tight Cordgrips, Snap-In Cordgrip Strain Reliefs may not be liquid tight at the panel interface. View our complete range of Liquid Tight Cordgrips with Integral Sealing Ring.
• Use Heyco Mounting Hole Plugs for DD Mounting Holes, or Heyco Dome Plugs for round Mounting Holes, to fill blank/unused Mounting Holes and thus allow for a single panel design across multiple applications. View our range of Heyco Hole Plugs here.
• For Foam Washers, click here.
• For Double D Mounting Hole Punches, click here.

QuickSpecs

Material		Nylon 6/6 w/Buna N Sealing Gland
Certifications		Recognized under Underwriters’ Laboratories File E51579
		Certified by Canadian Standards Association File 093876
Flammability Rating		94V-2
Temperature Range		-.04°F (-18°C) to 221°F (105°C)
