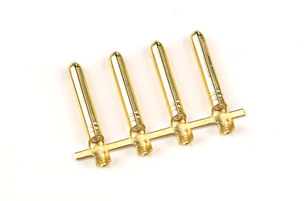

Heyco® .187″ Diameter Ground Pins – Male, Series 188, 186 and186-L

Specifications

Part number and specification

PART DATA			PART NO.	APPLICATION TOOLING*
Overall Length	AWG Range	Material		Die**	Feeds	Tool Packs	Crimp Punch	Anvil
in.	AWG Range	Material		Die**	Feeds	Tool Packs	Crimp Punch	Anvil
188 Series
1.35	18-12	Brass	5922	5922UXX5	Left to Right	B362L/B363L	C360	C629
1.35	18-12	Brass	5923	5923UXX5	Right to Left	B362R/B363R	C360	C365
186 Series
1.25	18-14	Brass	5877		Bulk
		Brass	5879	5879UXX5	Left to Right	B360L/B361L	C001	C009
		Brass	5880	5880UXX5	Right to Left	B360R/B361R
	14-10	Brass	5881	5881UXX5	Right to Left	B360R/B361R
186-L Series
1.37	18-14	Brass	5889	5889UXX5	Left to Right	B360L/B361L	C001	C009
	14-10	Brass	5888	5888UXX5	Left to Right	B360L/B361L
	18-14	Brass	5886	5886UXX5	Right to Left	B360R/B361R
	14-10	Brass	5884	5884UXX5	Right to Left	B360R/B361R

* Heyco high volume Application Tooling, designed for 3-5 ton presses - click here. Heyco Mini Applicators, designed for 1.5-3 ton bench top presses, are available - click here. ** "XX" represents Wire Gauge. Please specify Wire Gauge when ordering.

Features

For Heyco Padded and Full Thickness Blades, see Padded, Full Thickness, Right Angle, BGB & BGMT

All Series

.187˝ (4,7 mm) outside diameter.
Conductor crimp ears only.
Available only in continuous strip form except Part No. 5877 available Bulk only.
Overall length options of 1.25˝ (31,8 mm), 1.35˝ (34,3 mm), and
1.37˝ (34,8 mm).
Series 186 and 186-L feature a 90° “knee” section for strain relief and assembly orientation.
DFARS Compliant

QuickSpecs

Materials	Alloy 260 Brass (70% Cu, 30% Zn. Higher Cu content resists dezincification)
