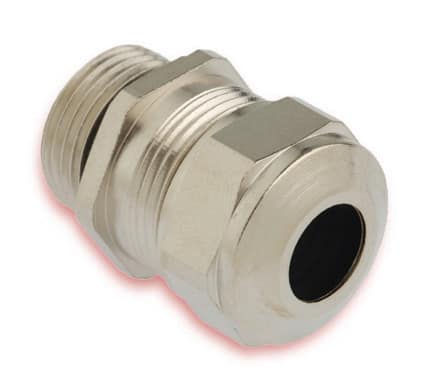

Heyco®-Tite EMC Brass Liquid Tight Cordgrips, Metric Hubs

Part number and specification

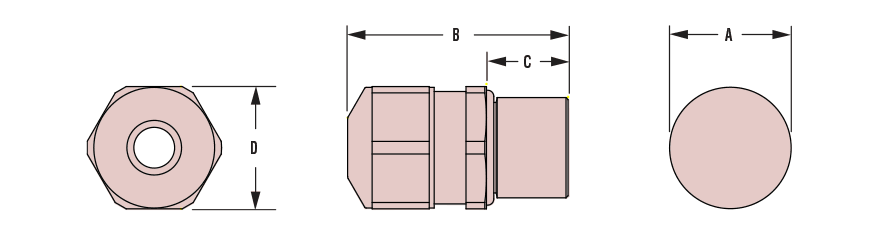

CABLE DIA. RANGE				PART NO.	Thread Size	PART DIMENSIONS
CABLE DIA. RANGE						A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Flat Size
Minimum		Maximum				A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Flat Size
in.	mm.	in.	mm.			in.	mm.	in.	mm.	in.	mm.	in.	mm.
Standard Thread
.098	2,5	.138	3,5	4613	M8 x 1,25	.315	8,0	.94	24,0	.39	10,0	.43	11,0
.118	3,0	.157	4,0	4614	M8 x 1,25	.315	8,0	.94	24,0	.39	10,0	.43	11,0
.118	3,0	.157	4,0	4615	M10 x 1,5	.394	10,0	.98	25,0	.39	10,0	.51	13,0
.157	4,0	.236	6,0	4616	M10 x 1,5	.394	10,0	.98	25,0	.39	10,0	.51	13,0
.177	4,5	.236	6,0	4618	M12 x 1,5	.472	12,0	1.06	27,0	.39	10,0	.59	15,0
.236	6,0	.295	7,5	4619	M12 x 1,5	.472	12,0	1.06	27,0	.39	10,0	.59	15,0
.236	6,0	.312	8,0	4622	M16 x 1,5	.630	16,0	1.18	30,0	.39	10,0	.71	18,0
.315	8,0	.394	10,0	4623	M16 x 1,5	.630	16,0	1.26	32,0	.39	10,0	.71	18,0
.315	8,0	.433	11,0	4625	M20 x 1,5	.787	20,0	1.22	31,0	.39	10,0	.94	24,0
.433	11,0	.551	14,0	4626	M20 x 1,5	.787	20,0	1.30	33,0	.39	10,0	.94	24,0
.512	13,0	.630	16,0	4628	M25 x 1,5	.984	25,0	1.41	36,0	.43	11,0	1.18	30,0
.630	16,0	.748	19,0	4629	M25 x 1,5	.984	25,0	1.53	39,0	.43	11,0	1.18	30,0
.709	18,0	.827	21,0	4631	M32 x 1,5	1.260	32,0	1.65	42,0	.51	13,0	1.42	36,0
.827	21,0	.984	25,0	4632	M32 x 1,5	1.260	32,0	1.65	42,0	.51	13,0	1.42	36,0
Short Thread
.098	2,5	.138	3,5	14613	M8 x 1,25	.315	8,0	.75	19,0	.20	5,0	.43	11,0
.118	3,0	.157	4,0	14614	M8 x 1,25	.315	8,0	.75	19,0	.20	5,0	.43	11,0
.118	3,0	.157	4,0	14615	M10 x 1,5	.394	10,0	.79	20,0	.20	5,0	.51	13,0
.157	4,0	.236	6,0	14616	M10 x 1,5	.394	10,0	.79	20,0	.20	5,0	.51	13,0
.177	4,5	.236	6,0	14618	M12 x 1,5	.472	12,0	.87	22,0	.20	5,0	.59	15,0
.236	6,0	.295	7,5	14619	M12 x 1,5	.472	12,0	.87	22,0	.20	5,0	.59	15,0
.236	6,0	.312	8,0	14622	M16 x 1,5	.630	16,0	.98	25,0	.20	5,0	.71	18,0
.315	8,0	.394	10,0	14623	M16 x 1,5	.630	16,0	1.06	27,0	.20	5,0	.71	18,0
.315	8,0	.433	11,0	14625	M20 x 1,5	.787	20,0	1.06	27,0	.24	6,0	.94	24,0
.433	11,0	.551	14,0	14626	M20 x 1,5	.787	20,0	1.10	29,0	.24	6,0	.94	24,0
.512	13,0	.630	16,0	14628	M25 x 1,5	.984	25,0	1.26	32,0	.28	7,0	1.18	30,0
.630	16,0	.748	19,0	14629	M25 x 1,5	.984	25,0	1.38	35,0	.28	7,0	1.18	30,0
.709	18,0	.827	21,0	14631	M32 x 1,5	1.260	32,0	1.46	37,0	.31	8,0	1.42	36,0
.827	21,0	.984	25,0	14632	M32 x 1,5	1.260	32,0	1.46	37,0	.31	8,0	1.42	36,0
Short Thread, High Temperature*
.236	6,0	.315	8,0	4609	M16 x 1,5	.630	16,0	.98	25,0	.20	5,0	.71	18,0

*Special sealing gland rated to 200°C (392°F)

Features

Ideal for applications where Electromagnetic Interference (EMI) protection or Electromagnetic Compatibility (EMC) is needed.
IP 68 rated.
Nickel-plated finish over brass provides excellent corrosion resistance and durability.

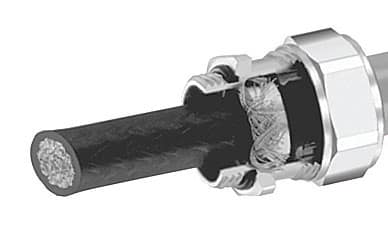

Excellent 360° shield contact with contact sleeve due to braided shield which runs into the gland.
Combination of the sealing insert and the contact socket guarantees a constant contact quality with minimal transfer impedance.
Inner cable protection.
Long thread for use in standard or thick panels.
Multiple sizes for flexible cord diameters ranging from .098″ (2,5 mm) to .984″ (25,0 mm).
For use in clearance or threaded holes.
Cordgrips are made of nickel plated brass and the gland is made of TPE.
EMC locknuts available. Click here.
DFARS Compliant

QuickSpecs

Material		Nickel-Plated Brass w/TPE Sealing Gland
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E51579 to both Canadian and U.S. requirements
Temperature Range		-40°F (-40°C) to 212°F (100°C)
IP Rating		IP 68, IP 69K
