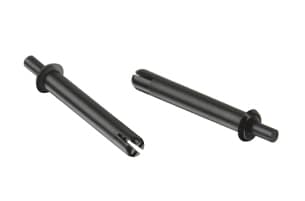

Heyco® Fan Guard Rivets

Specifications

Part number and specification

WILL FIT THESE PANELS						PART NO.	DESCRIPTION	PART DIMENSIONS						EXTRACTION FORCE
MOUNTING HOLE DIAMETER		PANEL THICKNESS				PART NO.		PART DIMENSIONS

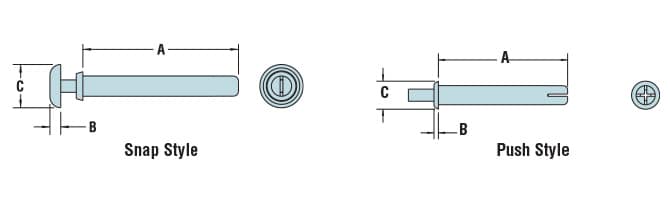

MOUNTING HOLE DIAMETER		Minimum		Maximum		Black		A Length		B Head Height		C Head Diameter
in.	mm.	in.	mm.	in.	mm.	Black		in.	mm.	in.	mm.	in.	mm.	Lbs	Kg

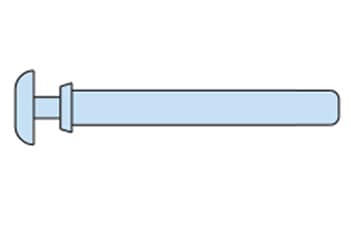

Snap Style
.124	3,1	.81	20,5	.85	21,5	9326	PR 124-807	.91	23,0	.06	1,6	.25	6,4	17.6	8
Push Style
.137	3,5	.81	20,5	.85	21,5	9327	DR 137-807	.91	23,0	.03	0,8	.20	5,0	17.6	8

UL94V-2 Nylon 6 - both Rivets

Permanently mount fan to chassis or finger guards to fan.
Provide tamper resistant application.
Prongs expand to hold securely as pin
is driven.
Single-operation front mounting saves time and money.
Low profile head.
Installed by hand or with installation tool.
Part Description Key: PR/DR XXX-YYY where XXX = Mounting Hole Diameter (inches) and YYY = minimum Panel Thickness (inches).
