Heyco® Original Strain Relief Bushing Air Tool, Air Tool Jaws & Replacement Parts

Part number and specification

PANEL HOLE DIAMETER		FOR ORIGINAL STRAIN RELIEF BUSHINGS	AIR TOOL PART NO. INCLUDING JAWS	JAW PART NO.*
in.	mm.	FOR ORIGINAL STRAIN RELIEF BUSHINGS	AIR TOOL PART NO. INCLUDING JAWS	Upper	Lower
.375	9,5	2L-1, 2M-1, 2P-4, 2P-5	0171	OT47	OT48
.437	11,1	3A-4	0173	OT49	OT50
.437	11,1	3L-1, 3P-4, 3P-5, 3W-1, 13-1	0175	OT51	OT52
.500	12,7	4A-6, 14A-1	0177	OT53	OT54
.500	12,7	4K-1, 4K-4, 4K-6, 4L-1, 4L-4, 4N-4, 4N-5, 4N-6, 4N-7, 4P-4, 5L-1, 5M-3, 5MN-3, 5N-4, 5N-5, 5N-7, 5P-4, 5P-7, 5P3-4, 6W-1, 14-1, 15-1	0179	OT55	OT56
.562	14,3	5K-4, 5KN-4, 5W-1, 16-1	0181	OT59	OT60
.625	15,9	6K-5, 6L-1, 6N-4, 6N-7, 6N2-4, 6N3-4, 6N3-5, 6N3-7, 6N4-4, 6P-4, 6P-5, 6P-7, 6P2-5, 6P3-4, 6P3-5, 6P3-7, 6P4-4, 6P10, 6P30, 10N-2, 10-2, 11-2, 11K-2	0183	0T61	0T62
.750	19,0	7N-2	0185	OT63¹	OT64²
.750	19,0	7P-2, 7P-7, 17-2	0187	OT65¹	OT66²
.875	22,2	7K-2, 7KR-2, 7L-2, 7W-2, 8L-1, 8P-2, 24-1, 31-2, 34-2	0189	OT67¹	OT68²
.875	22,2	8N-2	0193	OT71¹	OT72²
.375 x .625	9,5 x 15,9	300-1, 302-1	0191	OT69	OT70
.560 x .730	14,2 x 18,5	20-1, 20L-1, 30-1, 30-1A, 30-1B	0195	OT73	OT74
.750 x .875	19,0 x 22,2	23-1, 33-1	0197	OT75	OT76²

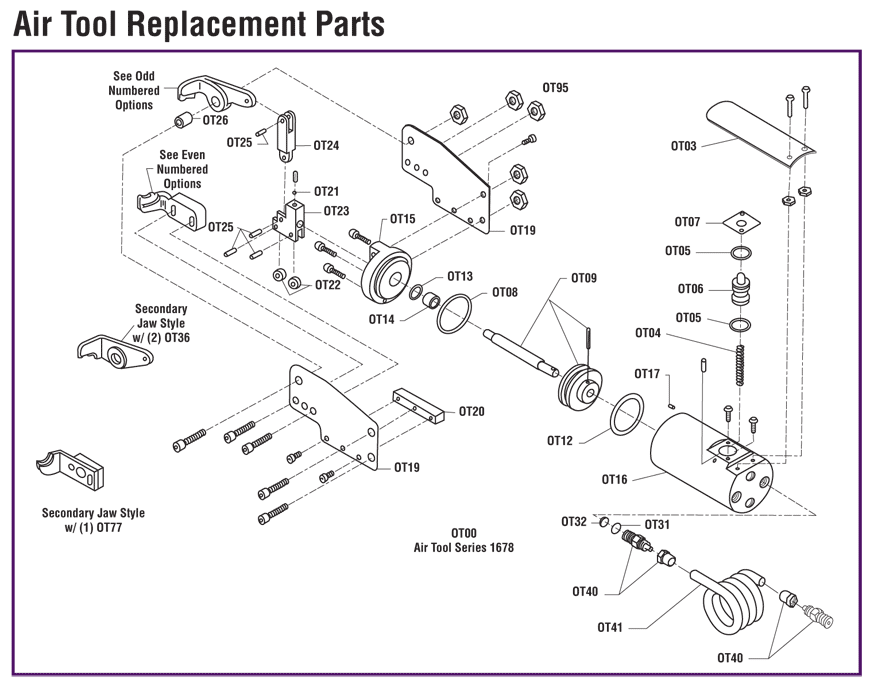

¹ Secondary (upper) Jaw style. When ordering additional spacer may be required (P/N OT36[2]). ² Secondary (lower) Jaw style. When ordering additional spacer may be required (P/N OT77[1]). *Jaw part number if purchased separately. See drawing below.

Features

Ordering Procedure for Air Tools

On the tabular chart, locate the panel mounting hole diameter and Original Strain Relief Bushing that you are using.
The appropriate Air Tool is shown on the same line.
Jaws may be purchased separately, see the two right most PART NO. columns.

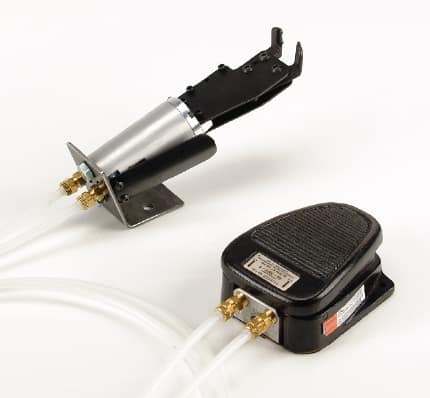

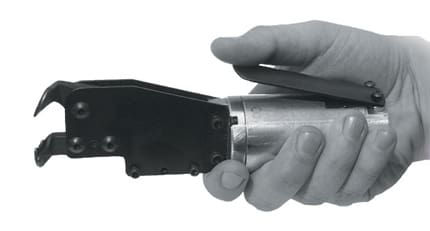

Bench Mount Kit Part No. 0T02 provides the necessary components to convert a hand Air Tool to a bench mounted unit. The bench Air Tool can be mounted in any convenient position on the assembly area work surface. The unit is foot activated, leaving the operator’s hands free.
Click here for Original Strain Relief Assembly Pliers
Click here for attaching Pliers for Metal Strain Reliefs
