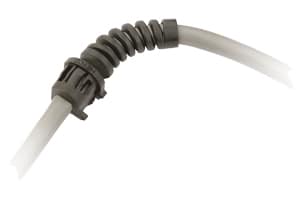

Heyco® RDD Lockit™ Strain Relief Bushings - Pigtail™ (Flat and Round Cables)

Part number and specification

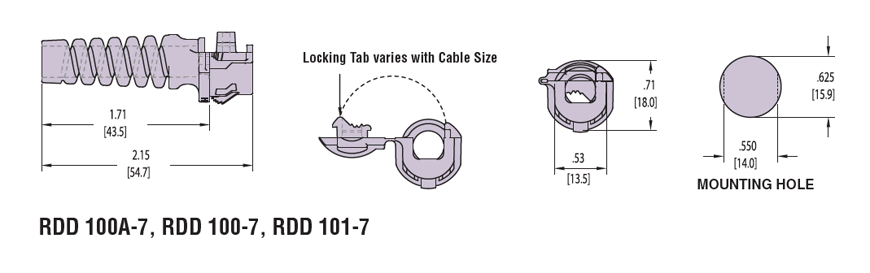

WILL FIT THESE CABLES				PANEL DIMENSIONS				RDD LOCKIT STRAIN RELIEF for Faster Assembly			Corresponding Mounting Hole Plug
UL Type	AWG/ Conductors	Approximate Size		Mounting Hole Size		Thickness		RDD LOCKIT STRAIN RELIEF for Faster Assembly			Corresponding Mounting Hole Plug
		Approximate Size		Mounting Hole Size		Thickness		PART NO.		DESC.	PART NO.	DESC.
		in.	mm.	in.	mm.	in.	mm.	Black	White	DESC.	PART NO.	DESC.
For Flat Cables
SPT-1	18/2 18/3	.105 x .222 .116 x .315	2,7 x 5,6 2,9 x 8,0	.625 w/ .550 flats	15,9 w/ 14,0 flats	.032	0,8	1769	1770	RDD 100A-7	2497	DD 625-550
						.040	1,1
						.048	1,2
						.063	1,6
						.099	2,5
SPT-2 HPN	18/2 18/3 16/3	.116 x .315 .160 x .300	2,9 x 8,0 4,1 x 7,6	.625 w/ .550 flats	15,9 w/ 14,0 flats	.032	0,8	1771	1772	RDD 100-7	2497	DD 625-550
						.040	1,1
						.048	1,2
						.063	1,6
						.099	2,5
For Round Cables
See UL Recognized Wire Type Table	various	.220-.290	5,6 x 7,4	.625 w/ .550 flats	15,9 w/ 14,0 flats	.032	0,8	1773	1774	RDD 101-7	2497	DD 625-550
						.040	1,1
						.048	1,2
						.063	1,6
						.099	2,5

Standard color black. Consult Heyco for white and other colors.

Features

Integral nylon spring eases the cable into a lazy bend; prevents kinking and assures longest cable and product life.
Designed to pass CSA’s 50,000 cycle vacuum cleaner test ( C22.2 No. 67) and UL’s 859 specification for Household Electric Personal Grooming Appliances Cord Flexing Test.
Assembly friendly! Independent of insertion into the panel, RDD Lockit™ Strain Reliefs self-lock onto the cable. Preassemble RDD Lockits off line for final assembly at a later time or remote location, for lower installed cost!
Install easily with fingertip pressure into a standard round or Double D hole. No tools required, even for hand assembly.
Protect the lifeline of your electric/electronic products by absorbing the forces of push and pull that may be exerted on the flexible power cord. Double D design eliminates the possibility of part rotation under forces of twist.
Multiple panel locking steps secure Lockit Strain Reliefs into a wide range of panel thicknesses for a flush, finished fit.
Heyco’s automated Pre-Assembly Equipment speeds assembly of the RDD onto the cable and thus lowers costs while greatly reducing risk of carpal tunnel syndrome.
Corresponding Mounting Hole Plugs can be used to fill blank/unused Mounting Holes and thus allow for a single panel design for multiple applications.
For Double D Mounting Hole Punches, click here.

Material		Nylon 6/6
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E15331
Certifications		Certified by the Canadian Standards Association File 8919
Flammability Rating		94V-2
Temperature Range		-.04°F (-18°C) to 221°F (105°C)

Heyco® RDD Lockit™ Strain Relief Bushings – Pigtail™ (Flat and Round Cables)
