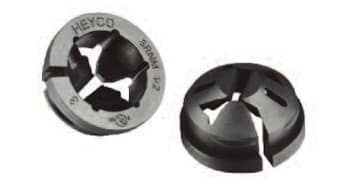

Heyco® Romex® Nylon Snap-in Strain Relief Box Connectors

Download Datasheet
Specifications

Part number and specification

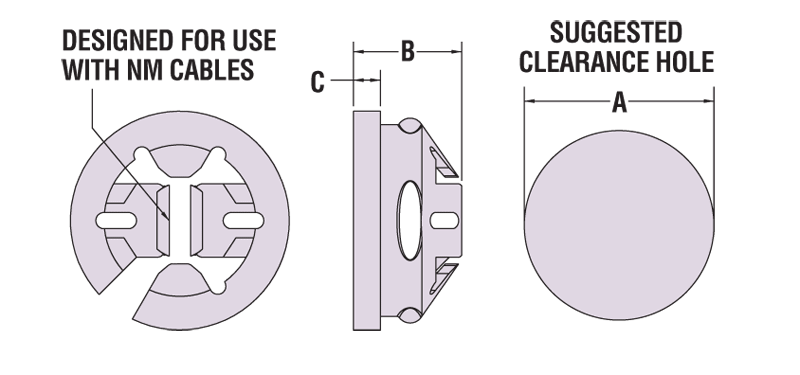

WILL FIT THESE CABLES PANEL or BOX DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS
Romex® Type AWG/Conductor Combinations A Mounting Hole Dia. Max. Panel Thickness Black B C
in. mm. in. mm. in. mm. in. mm.
NM-B One 14/2 One 12/2 Two 14/2 Two 12/2 One 14/2 & One 12/2 .875 22,2 .08 2,0 1046 SRNM 1/2 .50 12,7 .13 3,3
NMD-90 One 14/2 One 12/2
Standard color black.



Features

  • Snap into mounting holes with fingertip pressure.
  • Securely anchors, insulates and protects cables at panel or box entry points.
  • Accepts one or two NM cables, installed together or individually.
  • Add a second cable without removing the first.
  • Molded from electrically nonconductive Nylon 6/6.
  • Reusable.
  • cULus pending for UL 514B.

QuickSpecs

Material Nylon 6/6
Certifications cULus UL Listed under Underwriter’s Laboratories File 103540
Flammability Rating 94V-2
Temperature Range -22°F (-30°C) to 212°F (100°C)
