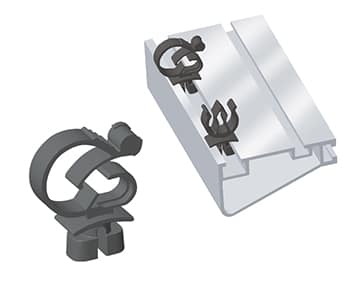

Heyco® Quarter-Turn Mount Wire Clips SBC QTM-3

Specifications

Part number and specification

BUNDLE DIAMETER				PART NO.		DESCRIPTION	PART DIMENSION
BUNDLE DIAMETER				HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		A Height		B Width		C Depth
in.	mm.	in.	mm.	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		in.	mm.	in.	mm.	in.	mm.
.29	7,4	.44	11,2	15412B	15414B	SBCQTM-3 437	.99	25,1	1.12	28,4	.31	7,9
.41	10,4	.69	17,5	15416B	15418B	SBCQTM-3 687	1.16	29,5	1.24	31,5
.60	15,2	.88	22,2	15420B	15422B	SBCQTM-3 875	1.46	37,1	1.66	42,2

All new Quarter-Turn Mount #3 style (QTM-3) products, designed to work with popular Ironridge and Unirac solar racking systems.
Could be used in any 3/8″ T-Slot racking or rail system from other manufacturers.
Simple application by hand with quick twist 90 degrees for friction fit swivel hold in place and high pull out retention.
Simply twist to remove for routing and location adjustment.
Wide cable diameter range for multiple applications.
Releasable and reusable.
Secure clamping, will not release easily.
Locking feature prevents twisting apart.
