Heyco® Quarter-Turn Mount Wire Clips, Helios QTM-3

Specifications

Part number and specification

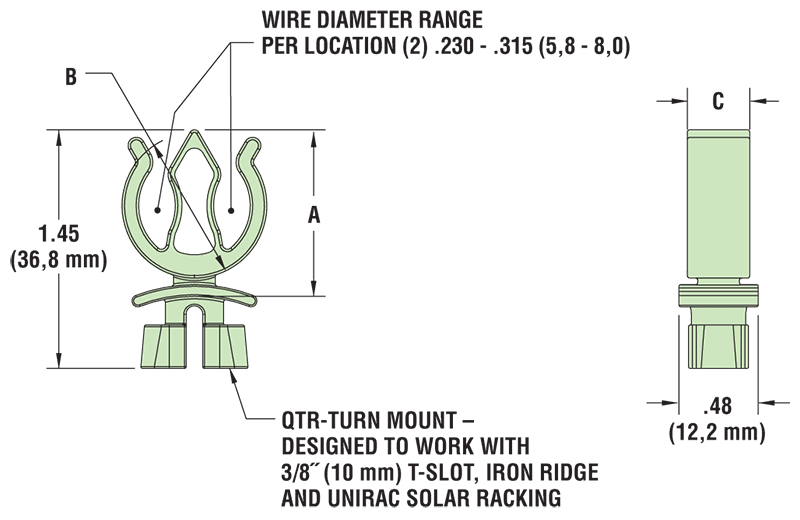

WIRE DIAMETER RANGE 1-2 Wires	PART NO.		DESCRIPTION	PART DIMENSION
	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		A Height		B Width		C Depth
	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		in.	mm.	in.	mm.	in.	mm.
.230 (5,8 mm) - .315 (8,0 mm) Each Cable	S6634B	S6635B	Helios QTM-3	1.01	25,7	.87	22,1	.38	9,6

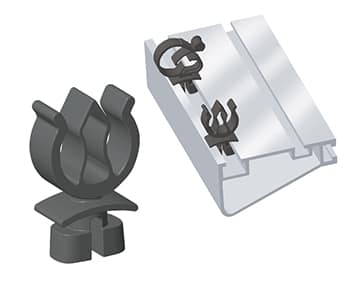

All new Quarter-Turn Mount #3 style (QTM-3) products, designed to work with popular IronRidge and Unirac solar racking systems.
Could be used in any 3/8″ T-Slot racking or rail system from other manufacturers.
Simple application by hand with quick twist 90 degrees for friction fit swivel hold in place and high pull out retention.
Simply twist to remove for routing and location adjustment.
Holds up to 2 cables between .230″ – .315″ (5,8 – 8,0 mm) each.
Cables install with fingertip pressure.
Design provides high axial retention with one cable and even higher retention with both cable bays filled.
