HEYClip™ SunRunner® Vidrio™ Cable Clips

Part number and specification

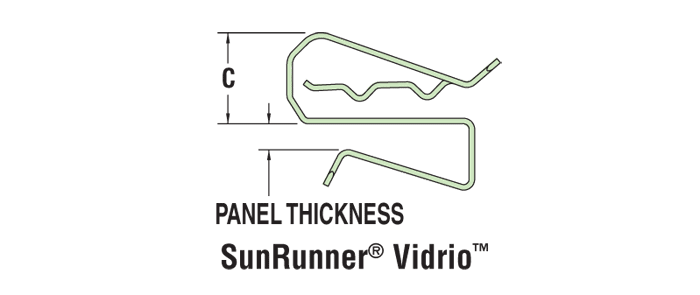

PANEL THICKNESS CLAMPING RANGE				WIRE DIA. RANGE Maximum (2) Wires	PART NO.	DESCRIPTION	FOOTPRINT A x B		OVERALL HEIGHT C
Minimum		Maximum			304 Stainless		FOOTPRINT A x B		OVERALL HEIGHT C
in.	mm.	in.	mm.		304 Stainless		in.	mm.	in.	mm.
1-2 Wires - SunRunner Vidrio™ Clip for GLASS panels up to .250" (6,4 mm) thick
.13	3,2	.25	6,4	.20" (5,1 mm)- .33" (8,3 mm) each cable	S6460	SunRunner^® Vidrio™ 100 Pack	.99 x .52	25,1 x 13,2	.45	11,4
.13	3,2	.25	6,4	.20" (5,1 mm)- .33" (8,3 mm) each cable	S6500	SunRunner^® Vidrio™ Bulk	.99 x .52	25,1 x 13,2	.45	11,4

Features

Heyco’s SunRunner’s robust “double-compression” design securely holds from (1) 12 gauge USE-2 to (2) 10 gauge PV-1000V solar wires.
Also for use with other cables from .20″ (5,1 mm) to .33″ (8,3 mm) in diameter.
Heyco SunRunner Clips are designed to provide a better method for PV module wire management and may be used wherever single or multiple cable management is needed.
Smooth clip edges prevent damage to cable insulation.
Locking tabs securely fasten clips to module extrusions, or other panels.
Screwdriver slot for easy removal or movement of clips if necessary.
Neatly dresses cables on PV panel frames or along mounting channels.
Constructed from corrosion resistant 304 stainless steel, not for use in a marine salt water environment.
316 stainless steel now available for marine and other harsh environments.

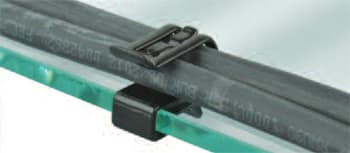

SunRunner Vidrio™ is designed to mount directly onto the glass panel with compression force only. Will not harm the glass surface, and the black color meets many HOA requirements!
The TPE coating on the SunRunner Vidrio™ provides an electrically insulated surface.
DFARS Compliant

Material		.025″ thick 304 or 316 stainless steel
Certifications		Certified by UL for Compliance with both Canadian and US Requirements under File E54523
Temperature Range		-40°F (-40°C) to 572°F (300°C)
