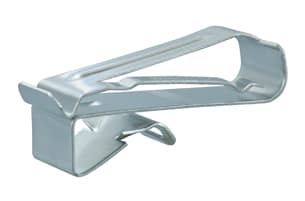

HEYClip® SunRunner® Cable Clips for 4 Cables

Part number and specification

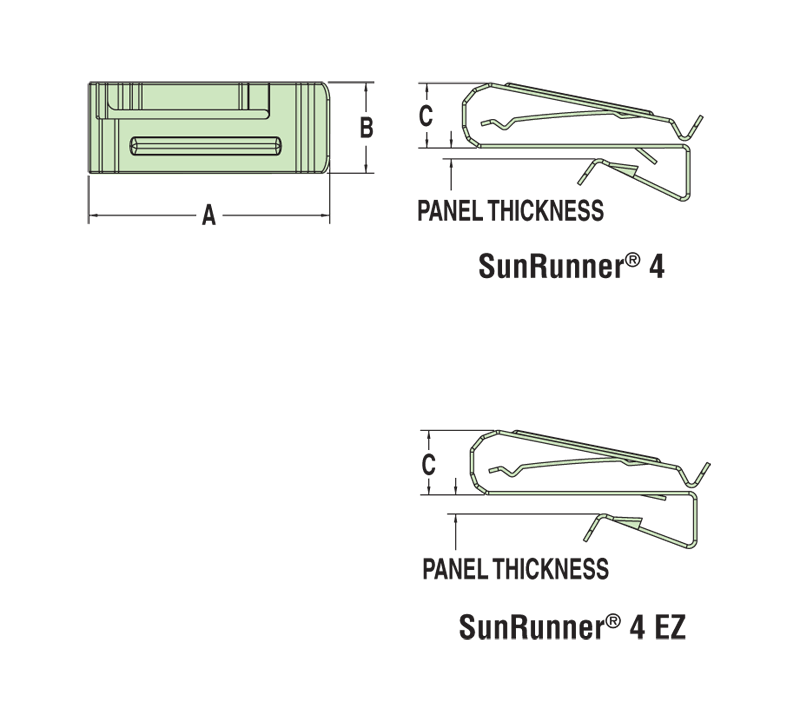

PANEL THICKNESS CLAMPING RANGE				WIRE DIAMETER RANGE	PART NO. 410 Stainless	DESCRIPTION	FOOTPRINT A x B		OVERALL HEIGHT C
Minimum		Maximum		Maximum (4) Wires			FOOTPRINT A x B		OVERALL HEIGHT C
in.	mm.	in.	mm.	Maximum (4) Wires			in.	mm.	in.	mm.
SunRunner 4 Clip - for panels up to .125" (3,2 mm) thick
.06	1,4	.13	3,2	.20" (5,1 mm) - .30" (7,6 mm)	S6443	SunRunner^® 4 Clip 100 Pack	1.34 x .50	33,8 x 12,7	.36	9,1
.06	1,4	.13	3,2	.20" (5,1 mm) - .30" (7,6 mm)	S6483	SunRunner^® 4 Clip Bulk	1.34 x .50	33,8 x 12,7	.36	9,1
SunRunner 4 EZ Clip - for panels up to .250" (6,4 mm) thick
.13	3,2	.25	6,4	.20" (5,1 mm) - .30" (7,6 mm)	S6400	SunRunner^® 4 EZ Clip 100 Pack	1.33 x .50	33,8 x 12,7	.36	9,1
.13	3,2	.25	6,4	.20" (5,1 mm) - .30" (7,6 mm)	S6440	SunRunner^® 4 EZ Clip Bulk	1.33 x .50	33,8 x 12,7	.36	9,1

Features

Heyco’s SunRunner and SunRunner EZ’s robust “double-compression” design securely holds up to two (2) cables from .20″ (5,1 mm) to .30″ (7,6 mm) in diameter.
Heyco SunRunner Clips are designed to provide a better method for PV module wire management and may be used wherever single or multiple cable management is needed.
Smooth clip edges prevent damage to cable insulation.
Locking tabs securely fasten clips to module extrusions, or other panels.
Screwdriver slot for easy removal or movement of clips if necessary.
Neatly dresses cables on PV panel frames or along mounting channels.
SunRunner 4 is constructed from heat treated 410 stainless steel for excellent strength and corrosion protection for outdoor exposure.
SunRunner EZ’s are designed for thicker module frames as well as racking – accommodates profiles up to .250″ (6,4 mm) thick!
DFARS Compliant.

Material	.020″ thick 410 stainless steel
Certifications	Certified by UL for Compliance with both Canadian and US Requirements under File E54523
Temperature Range	-40°F (-40°C) to 572°F (300°C)
