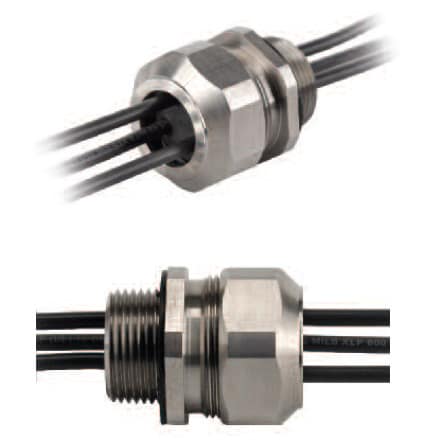

Heyco®-Tite Solar Masthead® Metal Liquid Tight Cordgrips

Multi-Hole, NPT Hubs – IP 68 Rated The Ultimate in Liquid Tight Strain Relief Protection
Specifications

Part number and specification

GLAND CONFIGURATION Conductors PART NO. DESCRIPTION PACKAGING Standard Pack or PART DIMENSIONS CAD

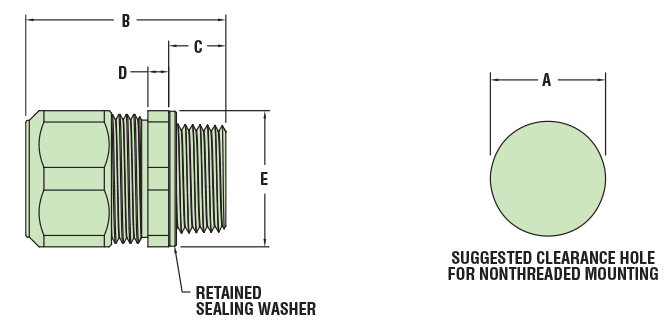

A Clearance Hole Dia. B Max. O.A. Length C Thread Length D E
Wrenching Nut
Size mm. No. Thickness Flat Size
in. mm. in. mm. in. mm. in. mm. in. mm.

Stainless Steel

5,5 9 M6013GBK-SM SSMCG 1 25 1.375 34,9 2.22 56,4 .69 17,5 .20 5,1 1.75 44,5 CAD
13 M6016GBM-SM SMCG 1-1/4 10 1.734 44,0 2.61 65,0 .71 18,0 .25 6,4 2.25 57,2 CAD
21 M6018GBQ-SM SSMCG 1-1/2 5 1.984 50,4 2.69 67,1 .73 18,5 .25 6,4 2.50 63,5 CAD
31 M6020GBY-SM SSMCG 2 5 2.469 62,7 2.92 74,2 .76 19,3 .25 6,4 2.75 69,9 CAD
7,7 5 M6013GBT-SM SSMCG 1 25 1.375 34,9 2.22 56,4 .69 17,5 .20 5,1 1.75 44,5 CAD
9 M6016GBW-SM SSMCG 1-1/4 10 1.734 44,0 2.61 65,0 .71 18,0 .25 6,4 2.25 57,2 CAD
11 M6018GBZ-SM SSMCG 1-1/2 5 1.984 50,4 2.69 67,1 .73 18,5 .25 6,4 2.50 63,5 CAD
19 M6020GBX-SM SSMCG 2 5 2.469 62,7 2.92 74,2 .76 19,3 .25 6,4 2.75 69,9 CAD
8,9 7 M6016GCJ-SM SSMCG 1-1/4 10 cRUus 1.734 44,0 2.61 65,0 .71 18,0 .25 6,4 2.25 57,2 CAD
9 M6018GCK-SM SSMCG 1-1/2 5 cRUus 1.984 50,4 2.69 67,1 .73 18,5 .25 6,4 2.50 63,5 CAD
12 M6020GCM-SM SSMCG 2 5 Ul 2.469 62,7 2.92 74,2 .76 19,3 .25 6,4 2.75 69,9 CAD
Assembled Metal Locknuts INCLUDED.



Features

  • Break-Thru Skinned-Over glands offer flexibility to use from 1 to 31 of the available holes while still providing a liquid tight seal around the wire.
  • Rolled grease-free threads prevent galling and allow for multiple assemblies and disassemblies.
  • Approved for NEMA 4, 4X, 6 and 6P applications.
  • Self-retaining sealing washers eliminate the need for an O-Ring groove, thus reducing cost.
  • Stainless Steel ideal for corrosive environments.
  • Provide a watertight seal for PV module output leads to inverters.
  • Secure input PV leads from solar panel array strings to fuse holder hookup within solar combiner boxes.
  • No disassembly required for installation.
  • Sealing washer required for through hole applications only.
  • DFARS Compliant.

QuickSpecs

Material   SSMCG: 303 Stainless Body and sealing nut with Nylon 6/6 finger and TPE Gland
Certifications Certified by UL for Compliance with both Canadian and US requirements under File E51579
Recognized under the Component Program of Underwriters’ Laboratories File E51579 to both Canadian and US requirements
Flammability Rating   94V-2
Temperature Range   -40°F (-40°C) to 212°F (100°C)
IP Rating   IP 68 (70 PSI, 5 BAR)
