Heyco® SunBundler® Stainless Steel Cable Ties

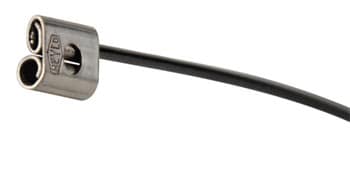

Crimp Lock PVC Coated Stainless Steel Wire Cable Ties

Specifications

Part number and specification

PART SPECIFICATIONS				PART NO. Black		DESCRIPTION	PART DIMENSIONS
Max. Tensile Strength		Maximum Bundle Diameter		100 Pack	Bulk		A Length		B Diameter
Lbs.	N	in.	mm.	100 Pack	Bulk		in.	mm.	in.	mm.
125	560	.95	24,1	S6484	S6485	SunBundler® 4*	4	102	.06	1,6
		1.55	39,4	S6486	S6487	SunBundler® 6	6	152
		2.30	58,4	S6408	S6409	SunBundler® 8	8	203
		2.92	74,2	S6410	S6411	SunBundler® 10	10	254
		3.88	98,6	S6412	S6413	SunBundler® 12	12	305
		4.20	106,7	S6414	S6415	SunBundler® 14	14	356
		6.36	161,5	S6420	S6421	SunBundler® 20	20	508
		7.32	185,9	S6424	S6425	SunBundler® 24	24	610
		8.59	218,2	S6426	S6427	SunBundler® 28	28	711
		9.87	250,7	S6428	S6429	SunBundler® 32	32	813
		11.13	282,7	S6430	S6431	SunBundler® 36	36	914
		12.41	315,2	S6491	S6492	SunBundler® 40	40	1016
		13.63	346,2	S6493	S6494	SunBundler® 44	44	1118

Standard color Black. *Non UL

Smooth vinyl jacketing prevents damage to installation cable insulation.
Easy field installation using standard pliers or wire cutters to both crimp the sleeve and cut the excess wire.
Certified by UL Specification 62275 for indoor and outdoor usage for Type 2 & 2S classifications.
UV protected vinyl jacket is excellent for solar installation where product durability is required.
Not for use in a marine salt water environment. Contact Heyco for alternative materials.
DFARS Compliant.

Material		Commercial Aircraft Grade 302/304 stainless wire w/UV protected vinyl jacket
Certifications		Certified by Underwriter’s Laboratories for Compliance to both Canadian and U.S. Requirements under File E54523
Temperature Range		-40°F (-40°C) to 221°F (105°C)
