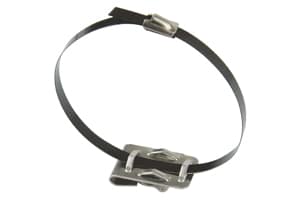

HEYClip™ SunRunner® CT Cable Tie Mounting Platforms

Stainless Steel Edge Clip

Specifications

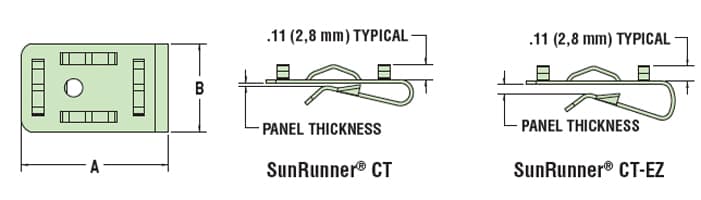

Part number and specification

MAX CABLE TIE WIDTH		PANEL THICKNESS CLAMPING RANGE				INSERT POINTS	PART NO.	DESCRIPTION	FOOTPRINT A x B		REAR TAB LENGTH
MAX CABLE TIE WIDTH		Minimum		Maximum					FOOTPRINT A x B		REAR TAB LENGTH
in.	mm.	in.	mm.	in.	mm.				in.	mm.	in.	mm.
SunRunner CT
.31	8,0	.06	1,5	.13	3,3	4	S6434	SunRunner CT 100 Pack	1.05 x .63	26,7 x 16,0	.77	19,5
.31	8,0	.06	1,5	.13	3,3	4	S6474	SunRunner CT Bulk	1.05 x .63	26,7 x 16,0	.77	19,5
SunRunner CT-EZ
.31	8,0	.13	3,3	.25	6,4	4	S6435	SunRunner CT-EZ 100 Pack	1.06 x .63	26,9 x 16,0	.77	19,5
.31	8,0	.13	3,3	.25	6,4	4	S6475	SunRunner CT-EZ Bulk	1.06 x .63	26,9 x 16,0	.77	19,5

Designed to easily mount to module or frame extrusions without the need for mounting holes or adhesives.
Designed to be used with Heyco Stainless Steel Cable Ties up to .31″ (8,0 mm) width or Heyco SunBundler Stainless Steel Wire Cable Ties.
Hold cable bundles parallel or perpendicular to the mounting frame.
Generous lead-in for installation without tools.
Constructed from corrosion resistant 304 stainless steel.
SunRunner CT-EZ designed for thicker module frames as well as racking systems – accommodates profiles up to .250″ (6,4 mm) thick.
UL Listed per UL 1565.

Material		.025″ Thick 304 stainless steel
Certifications		Certified by UL for Compliance with both Canadian and US Requirements under File E54523

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
