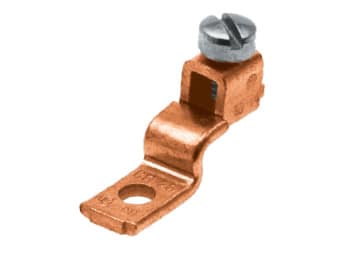

Heyco® Copper Lug Connector

Specifications

Part number and specification

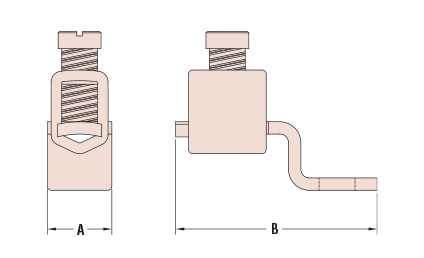

WIRE RANGE (AWG)	PART NO.	DESCRIPTION	CURRENT RATING AMPS	HEIGHT WITH MAX. WIRE		PART DIMENSIONS
				HEIGHT WITH MAX. WIRE		A Tang Width		B Length		Bolt Size
				in.	mm.	in.	mm.	in.	mm.	in.	mm.
6-14	1851	CB 35	50	3/4	19,1	.38	9,7	1.38	35,1	3/16	4,8

*Not CSA.

Materials		6061-T6 Aluminum alloy; electrolytic copper
Certifications		Listed under Underwriters’ Laboratories File E80121
Certifications		Certified by the Canadian Standards Association File 242954 & 246619
Flammability Rating		94V-0
