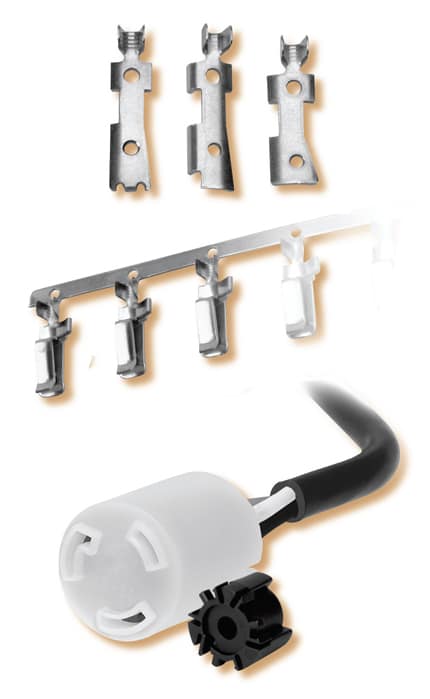

Heyco® Turn-2-Lock Cordset Contacts - 20 Amp - Heyco

Specifications

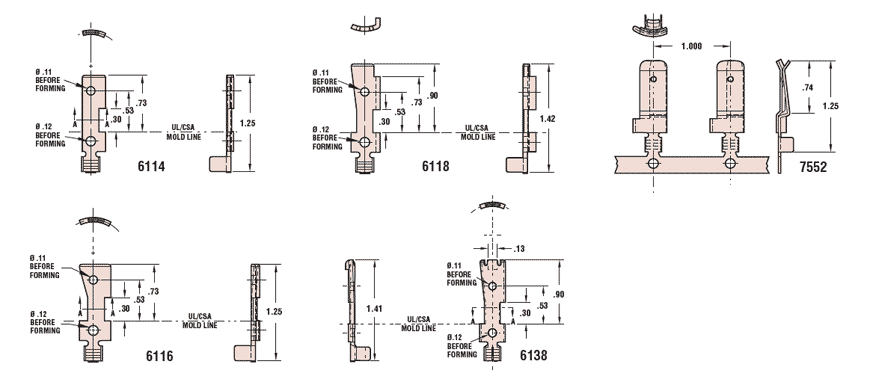

Part number and specification

PART DATA			PART NO.	APPLICATION TOOLING*					PDF
Type	AWG Range	Material	PART NO.	Die**	Feeds	Tool Packs	Crimp Punch	Anvil	PDF
Male - for snap together Male Nylon Premold Bridges
TL-L5-20-W†	16-10	Brass	6114	6114UXX5	Bulk	B958/B959	C663	C667
TL-L5-20-B†	16-10	Brass	6116	6116UXX5
TL-L5-20-G	16-10	Brass	6118	6118UXX5
TL-L7-20-G	16-10	Brass	6132	6132UXX5
TL-L24-20-G	16-10	Brass	6138	6138UXX5
Female - for snap together Female Nylon Premold Bridges
TLR-L5-20	16-10	Brass	7552	7552UXX5	Left to Right	B972L/B973	C784	C783

* Use the Heyco Universal Applicator Die (indicated by “U” in the Die Part No.), click here. ** “XX” represents Wire Gauge. Please specify Wire Gauge when ordering. † Can be used for L7 and L24 configurations.

Features

20 Amp

For Finished, Custom Turn-2-Lock Cord and Plug Sets, see the Turn-2-Locks section.

Easy loading for increased molding efficiency.
Use inexpensive Heyco load pins (consult Heyco for details on our complete line of blades and pins).
Reduce PVC usage and allow more cavities per mold.
All Ground blades feature 90° leg for twist-locking mechanism.
.056˝ gauge material, cut-out shapes and radius are all UL Specified.
DFARS Compliant

QuickSpecs

Materials		Alloy 260 Brass (70% Cu, 30% Zn. Higher Cu content resists dezincification)
Materials		Nylon 6/6
