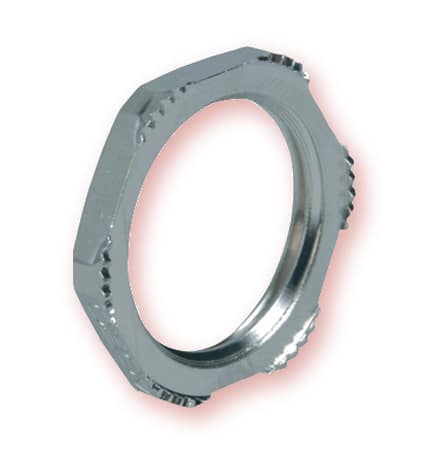

Heyco-Tite Nickel-Plated Brass EMC Locknuts

Specifications

Part number and specification

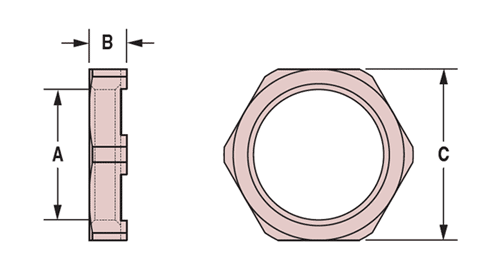

THREAD SIZE	PART NO.	DESCRIPTION	PART DIMENSIONS
A			B Thickness		C Wrenching Flat Size
A			in.	mm.	in.	mm.
PG Thread
PG 7	4671	EMC LN PG 7	.13	3,3	.59	15,0
PG 9	4672	EMC LN PG 9	.13	3,3	.71	18,0
PG 11	4673	EMC LN PG 11	.14	3,5	.83	21,0
PG 13.5	4674	EMC LN PG 13.5	.14	3,5	.94	24,0
PG 16	4675	EMC LN PG 16	.14	3,5	1.02	26,0
PG 21	4676	EMC LN PG 21	.16	4,0	1.26	32,0
PG 29	4677	EMC LN PG 29	.18	4,6	1.61	41,0
Metric Thread
M8 x 1,25	4681	EMC LN M8	.13	3,3	.43	11,0
M10 x 1,5	4682	EMC LN M10	.13	3,3	.51	13,0
M12 x 1,5	4683	EMC LN M12	.14	3,5	.59	15,0
M16 x 1,5	4684	EMC LN M16	.14	3,5	.75	19,0
M20 x 1,5	4685	EMC LN M20	.16	4,0	.94	24,0
M25 x 1,5	4686	EMC LN M25	.16	4,0	1.18	30,0
M32 x 1,5	4687	EMC LN M32	.20	5,0	1.42	36,0

Ideal for use with painted surfaces to ensure EMC/EMI integrity.
Cutting teeth on locknuts provide optimal shield contact with painted surfaces.
Nickel-plated finish over brass provides excellent corrosion resistance and durability.
DFARS Compliant

Material		Nickel-Plated Brass w/TPE Sealing Gland
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E51579 to both Canadian and U.S. requirements
Temperature Range		-40°F (-40°C) to 212°F (100°C)
