Heyco® PVC Corrugated Conduit
Electrical Non-Metallic Tubing (ENT)
| METRIC DESIGNATION (TRADE SIZE) | PART NO | DESCRIPTION | PART DIMENSIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gray | ||||||||||||

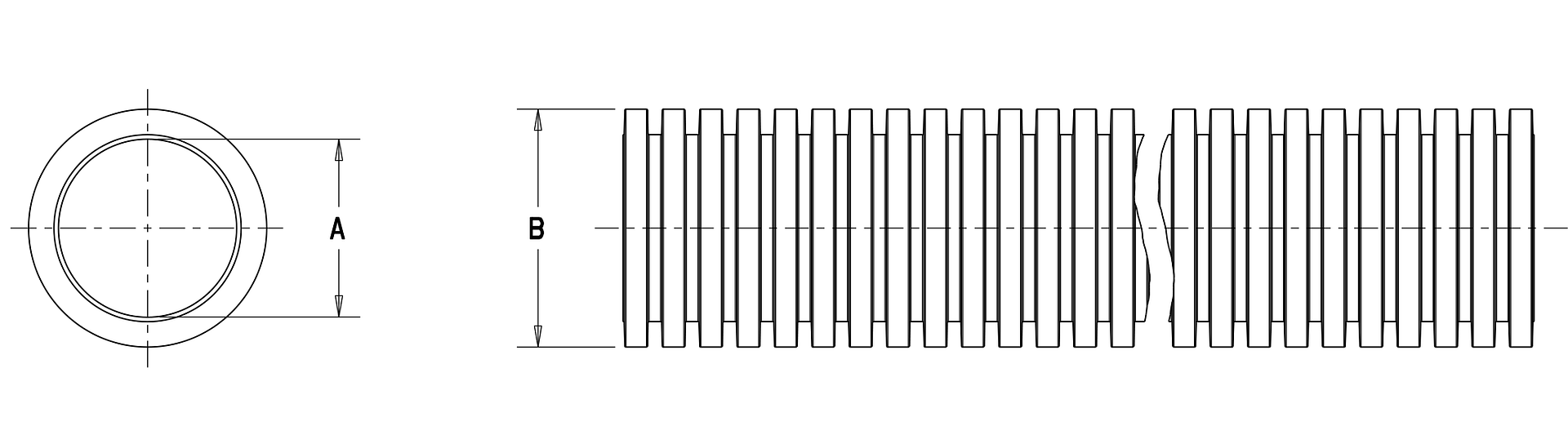

| PVC | A | B | Roll Length | |||||||||
| Inside Diameter | Outside Diameter | |||||||||||
| Min | Max | Min | Max | |||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | Ft. | M. | |||
| 16 (1/2) | 8289 | HF7 1/2 200' COIL GRAY | .57 | 14,6 | .63 | 16,0 | .83 | 21,1 | .85 | 21,5 | 200 | 61 |
| 21 (3/4) | 8290 | HF7 3/4 100' COIL GRAY | .78 | 19,7 | .83 | 21,1 | 1.04 | 26,4 | 1.06 | 26,9 | 100 | 31 |
| 27 (1) | 8291 | HF7 1 100' COIL GRAY | 1.00 | 25,4 | 1.06 | 26,9 | 1.31 | 33,2 | 1.33 | 33,7 | 100 | 31 |
| 35 (1-1/4) | 8292 | HF7 1-1/4 750' REEL GRAY | 1.33 | 33,7 | 1.39 | 35,4 | 1.65 | 41,9 | 1.67 | 42,5 | 750 | 229 |
| 41 (1-1/2) | 8293 | HF7 1-1/2 750' REEL GRAY | 1.56 | 39,6 | 1.62 | 41,2 | 1.89 | 48,0 | 1.91 | 48,6 | 750 | 229 |
| 53 (2) | 8294 | HF7 2 500' REEL GRAY | 2.02 | 51,2 | 2.08 | 52,8 | 2.36 | 60,0 | 2.39 | 60,6 | 500 | 152 |
| Material | PVC |
|---|---|
| Certifications | Listed under Underwriters’ Laboratories File E530821, FT4 Rated |
| Temperature Range | -4°F (-20°C) – 122°F (50°C) |
