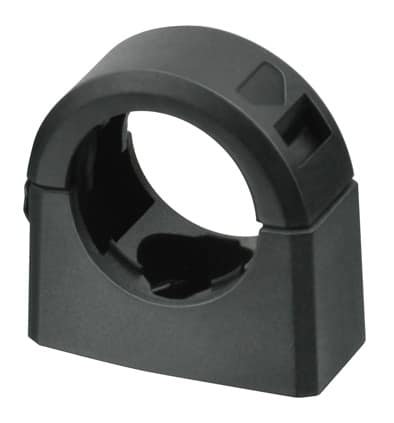

Heyco® Nylon Corrugated Conduit/Tubing Mounting Clips

Part number and specification

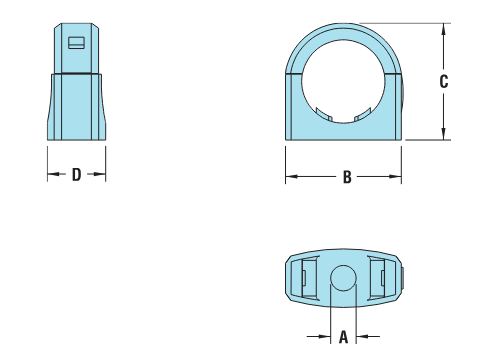

FITS CONDUIT SIZE	PART NO.	DESCRIPTION	PART DIMENSIONS
	Black		A Mounting Hole Dia.		B Width		C Max O.A. Height		D Max O.A. Thickness
	Black		in.	mm.	in.	mm.	in.	mm.	in.	mm.
13 mm	F8902	FCL 13	.197	5,0	.894	22,7	1.093	26,4	.787	20,0
16 mm	F8904	FCL 16	.205	5,2	1.039	26,4	1.173	29,8
21 mm	F8906	FCL 21	.244	6,2	1.252	31,8	1.437	36,5
28 mm	F8908	FCL 28	.244	6,2	1.606	40,8	1.752	44,5
34 mm	F8910	FCL 34	.244	6,2	1.890	48,0	2.028	51,5

Standard color black.

Features

For mounting Heyco Nylon Corrugated Conduit or Tubing securely into place, vertically or horizontally. HPAS
Low profile design for space savings and pleasing appearance.
Only fingertip pressure is required to snap conduit or tubing into bracket.

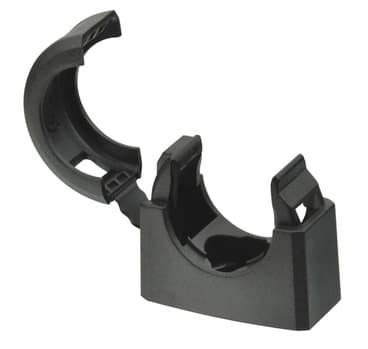

Can be easily opened for temporary access/removal and closed again to secure conduit.
Suitable for use with both fine and/or coarse pitch conduit/tubing.
Suitable for use by original equipment manufacturers.
Resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL certification or testing.)
Recommended distance between brackets at intervals not greater than 3 feet (914 mm) as required by Article 351-27 of 1996 NEC.
Use one standard #10 (4-5M) screw for attaching bracket to panel or chassis (screw not included).

Material		Nylon 6/6
Certifications		Approved as per BS EN50086
Flammability Rating		94V-2 and Low Fire Hazard Including Low Smoke, Low Toxicity as well as Halogen, Sulphur, and Phosphorus Free
Temperature Range		-58°F (-50°C) to 275°F (135°C)
