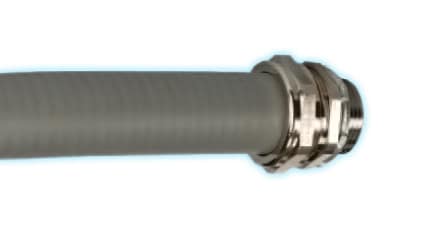

Heyco-Flex™ VI Liquid Tight Conduit

Flexible, PVC/Metal Liquid Tight Electrical Conduit (LFMC)
Download Datasheet
Specifications

Part number and specification


TRADE SIZE PART NO. Gray DESCRIPTION PART DIMENSIONS MINIMUM BEND RADIUS STANDARD COIL LENGTH CAD

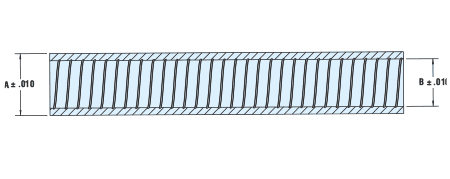

A Outside Diameter B Inside Diameter
in. mm. in. mm. in. ft/coil
3/8 8457 HF6 3/8 LFMC .70 17,8 .49 12,5 2.0 100 CAD
1/2 8458 HF6 1/2 LFMC .83 21,1 .63 16,1 3.25 CAD
3/4 8459 HF6 3/4 LFMC 1.04 26,4 .83 21,1 4.25 CAD
1 8460 HF6 1 LFMC 1.30 33,1 1.04 26,4 6.5 CAD
Standard color gray. Consult Heyco for black and other colors.



Features

    • Constructed of PVC jacketed, continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance.
    • Used with standard liquid-tight fittings for easy installation.
    • IP 67 Rated when installed with approved connectors.
    • Durable, sunlight resistant and flame retardant thermoplastic PVC jacket that resists heat, oil, and chemical breakdown.
    • Approved for both exposed and concealed locations, direct burial and in concrete.
    • Approved as an equipment grounding conductor if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8″ and 1/2″ and 60 amps or less for 3/4″ through 1-1/4″.
    • Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2.
    • Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.
    • DFARS Compliant

QuickSpecs

Material PVC jacket with zinc galvanized steel core
Certifications Listed under the Component Program of Underwriters’ Laboratories File E469210
Certified by Canadian Standard Association File 260992
Temperature Range -4°F (-20°C) to 140°F (60°C)
