Heyco®-Tite Metallic Liquid Tight Cordgrips - NPT Hubs

Part number and specification

CABLE DIA. RANGE				PART NO.	DESC.	Gland Color	NPT HUB SIZE	PART DIMENSIONS

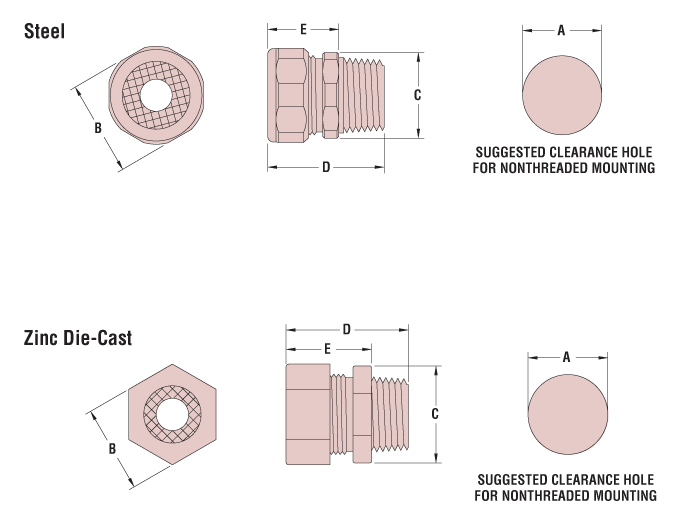

CABLE DIA. RANGE								A Clearance Hole Dia.		B Sealing Nut HEX		C Body Nut O.D.		D Overall Length*		E Exposed Length*
Minimum		Maximum						A Clearance Hole Dia.		B Sealing Nut HEX		C Body Nut O.D.		D Overall Length*		E Exposed Length*
in.	mm.	in.	mm.					in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
Steel
.150	3,8	.250	6,3	9760	CG 50A-250	Red	1/2	.875	22,2	1.03	26,2	.94	23,8	1.31	33,3	.81	20,6
.250	6,3	.350	8,9	9761	CG 50A-350	White
.350	8,9	.450	11,4	9762	CG 50A-450	Blue
.450	11,4	.550	14,0	9763	CG 50A-560	Green
.550	14,0	.650	16,5	9764	CG 50A-650	Brown
.150	3,8	.250	6,3	9766	CG 75A-250	Red	3/4	1.109	28,2	1.03	26,2	1.18	29,9	1.31	33,3	.81	20,6
.250	6,3	.350	8,9	9767	CG 75A-350	White
.350	8,9	.450	11,4	9769	CG 75A-450	Blue
.450	11,4	.550	14,0	9770	CG 75A-560	Green
.550	14,0	.650	16,5	9771	CG 75A-650	Brown
.650	16,5	.750	19,0	9772	CG 75B-750	Orange	3/4	1.109	28,2	1.27	32,3	1.18	29,9	1.56	39,7	1.03	26,2
.750	19,0	.850	21,6	9773	CG 75B-850	Purple	3/4	1.109	28,2	1.27	32,3	1.18	29,9	1.56	39,7	1.03	26,2
Zinc Die-Cast
.190	4,8	.250	6,3	9776	CG 11	N/A	1/2	.875	22,2	1.00	25,4	.94	23,8	1.20	30,5	.80	20,3
.260	6,6	.375	9,5	9777	CG 12
.375	9,5	.450	11,4	9778	CG 13

*May vary slightly depending on cable diameter.

Features

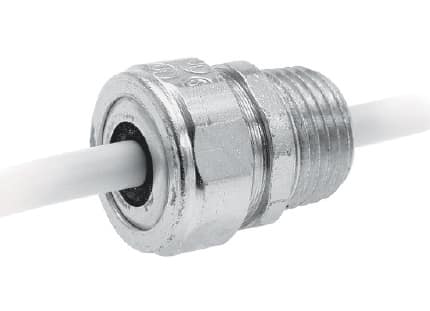

Steel:

Zinc plated steel construction for superior protection of flexible cables.
Compact design allows fittings to be consecutively ganged–no skipping knockouts–and occupy less real estate.
Galvanized steel pressure ring prevents distortion of the grommet when the sealing nut is tightened.
Neoprene rubber grommet ensures a permanent rain-tight seal around the cable.
Body and sealing nut are made of corrosion resistant machined steel. Zinc plated with special brighteners for an attractive finish.
Color coded label system identifies the cordgrips by wire range/grommet opening.
For use in clearance or threaded holes.
Multiple cable sizes with 1/2″ to 3/4″ NPT hubs, cover a flexible cord diameter range of .150″ (3,8 mm) to .850″ (21,6 mm).
Temperature Rating: 221°F (105°C).
DFARS Compliant

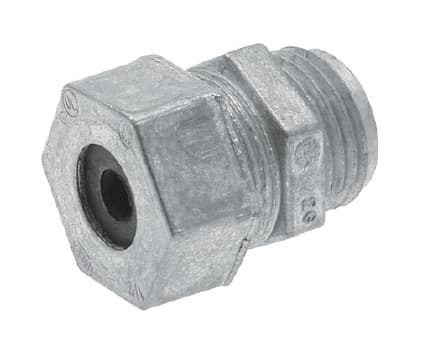

Zinc Die-Cast

Zamac #3 construction for protection of flexible cables.
For use in clearance or threaded holes.
We recommend using the smallest maximum diameter range cordgrip that will fit your application.
Temperature Rating: 140°F (60°C).
DFARS Compliant

Heyco®-Tite Metallic Liquid Tight Cordgrips – NPT Hubs
