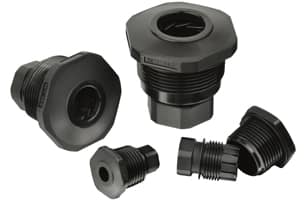

Heyco®-Tite Low-Profile Liquid Tight Cordgrips

Part number and specification

CABLE DIAMETER RANGE						PART NO.		DESCRIPTION	PART DIMENSIONS

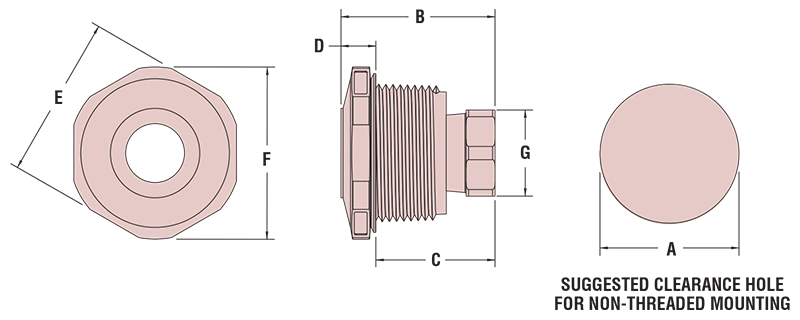

CABLE DIAMETER RANGE						Black	Gray		A Clearance Hole Dia.		B Max. O.A. Length		C Length Under Sealing Nut Head Max		D Sealing Nut Head Height		E Sealing Nut (Upper) Flats		F Sealing Nut (Upper) Across Corners		G Body Hex (Lower) Flats
IP 68 Sealing
Minimum		UL Approved
Minimum		Minimum		Maximum
in.	mm.	in.	mm.	in.	mm.				in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
.065	1,7	.230	5,8	.230	5,8	LP4518	LP4519	RLPCG 1/2	0.875	22,2	1.21	30,7	.98	24,9	.23	5,8	.98	24,9	1.08	27.4	.54	13,7
.105	2,7	.210	5,3	.315	8,0	LP3231	LP3232	LPCG 1/2	0.875	22,2	1.21	30,7	.98	24,9	.23	5,8	.98	24,9	1.08	27.4	.54	13,7
.095	2,4	.290	7,4	.290	7,4	LP3460	LP3461	RLPCG 3/4	1.109	28,2	1.45	36,8	1.10	27,9	.35	8,9	1.28	32,5	1.44	36,6	.74	18,8
.170	4,3	.250	6,4	.450	11,4	LP3234	LP3235	LPCG 3/4	1.109	28,2	1.45	36,8	1.10	27,9	.35	8,9	1.28	32,5	1.44	36,6	.74	18,8
.250	6,4	.385	9,8	.490	12,4	LP4522	LP4523	RLPCG 1-1/4	1.680	42,7	1.86	47,2	1.44	36,6	.42	10,7	1.97	50,0	2.08	52,8	1.04	26,4
.435	11,0	.435	11,0	.705	17,9	LP4524	LP4525	LPCG 1-1/4	1.680	42,7	1.86	47,2	1.44	36,6	.42	10,7	1.97	50,0	2.08	52,8	1.04	26,4
.490	12,4	.490	12,4	.785	19,9	LP3319	LP3320	RLPCG 1-1/2	1.920	48,8	2.16	54,9	1.65	41,9	.51	13,0	2.24	56,9	2.40	61,0	1.36	34,5
.590	15,0	.590	15,0	1.000	25,4	LP3317	LP3318	LPCG 1-1/2	1.920	48,8	2.16	54,9	1.65	41,9	.51	13,0	2.24	56,9	2.40	61,0	1.36	34,5

Features

The revolutionary new Low Profile Cord Grip incorporates traditional sealing nut design blended with knockout hole size to offer a Cord Grip with a Low Profile look that is sleek.
The low profile design provides the traditional Heyco performance in a package that can be used where height real estate is limited.
The low profile design is tamper proof from outside of an enclosure providing security on the cable assembly.
Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time.
IP 68 rated.
Approval for NEMA 4, 4X, 6 and 6P applications – Pending.
Ratchet design of sealing nut assembly provides superior anti-vibration protection and ensures a firm grip on the cable.
Acme threads on body prevent skipping and speed installation.
All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
We recommend using the fitting with the smallest maximum diameter that will fit your application.
Heyco recommended torque specifications can be found here: Heyco® Low-Profile Liquid Tight Cordgrips Torque Chart
Patent Pending.

Material		Nylon 6/6 w/Buna N or TPE Sealing Gland
Certifications		Listed under Underwriters’ Laboratories File E51579 (Pending)
		Recognized under the Component Program of Underwriters’ Laboratories File E51579 (Pending)
		Certified by Canadian Standards Association File 93876C
		Approved for NEMA 4, 4X, 6 and 6P applications (Pending)
Flammability Rating		94V-2 consult factory for V0 material
Temperature Range		Static -40°F (-40°C) to 239°F (115°C)
Temperature Range		Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating		IP 68 (2.7 PSI)
