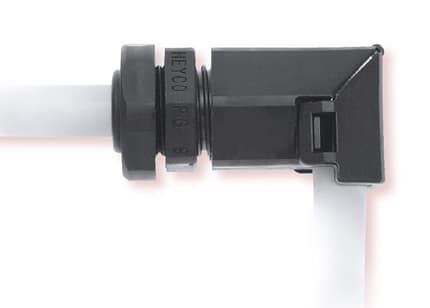

Heyco®-Tite Liquid Tight Cordgrips Right Angle, Metric Hubs

Part number and specification

CABLE DIA. RANGE		PART NO.	DESCRIPTION	PART DIMENSIONS

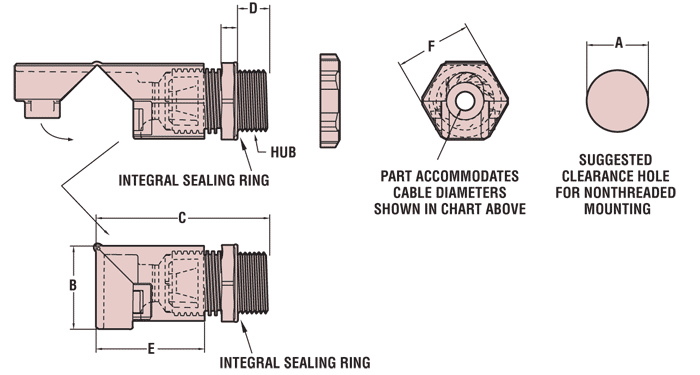

CABLE DIA. RANGE		Black		A Clearance Hole Dia.		B Right Angle Height		C Max. O.A. Length (Closed)		D Thread Length		E Sealing Nut Length		F Wrenching Nut Flat Size
in.	mm.	Black		in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
.065 - .210	1,7 - 5,3	M4448	RLTCG M12 90	.473	12,0	.69	17,5	1.53	38,8	.32	8,1	.86	22,0	.63	16,0
.115 - .250	2,9 - 6,4	M4450	LTCG M12 90	.473	12,0	.69	17,5	1.53	38,8	.32	8,1	.86	22,0	.63	16,0
.065 - .230	1,7 - 5,8	M4452	RLTCG M16 90	.630	16,0	.88	22,3	1.77	44,9	.32	8,1	1.07	27,1	.82	20,8
.105 - .315	2,7 - 8,0	M4454	LTCG M16 90	.630	16,0	.88	22,3	1.77	44,9	.32	8,1	1.07	27,1	.82	20,8
.095 - .290	2,4 - 7,4	M4456	RLTCG M20 90	.787	20,0	1.06	26,9	2.21	56,1	.41	10,4	1.38	35,1	.98	24,9
.170 - .450	4,3 - 11,4	M4458	LTCG M20 90	.787	20,0	1.06	26,9	2.21	56,1	.41	10,4	1.38	35,1	.98	24,9

Standard color black.

Features

Cordgrip is molded in the open position for ease of installation. After cable insertion, the fitting snaps closed, bending the cable without damage. This assembly method saves considerable time and money.
Part design provides liquid tight integrity even in the open position.
Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time.
Widest range of approved cable dimensions.
IP 68 rated.
Approved for NEMA 4, 4X, 6 and 6P applications.
Acme threads on body prevent skipping and speed installation.
All nylon construction with Buna N or TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
We recommend using the fitting with the smallest maximum diameter that will fit your application.
Patented.
CE Low Voltage Directive 73/23/EEC.
VDE Marks License #40010390
Unassembled Nylon Locknuts INCLUDED.
For Heyco Liquid Tight Threaded Plugs, click here.
Consult Heyco for cordgrips molded in other colors.

Material		Nylon 6/6 w/Buna N or TPE Sealing Gland
Certifications		Listed under Underwriters’ Laboratories File E51579
		Recognized under Components Program of Underwriters’ Laboratories File E51579
		Certified by Canadian Standard Association File 93876C
		Approved for NEMA 4, 4X, 6 and 6P applications
		VDE Marks License #40010390 (metric parts only)
		Low Voltage Directive 73/23/EEC (metric parts only)
Flammability Rating		94V-2
Temperature Range		Static -40°F (-40°C) to 239°F (115°C)
Temperature Range		Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating		IP 68 (70 PSI, 5 BAR)
