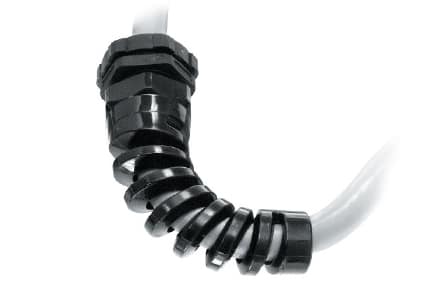

Heyco®-Tite Liquid Tight Cordgrips Pigtail, PG Hubs

Part number and specification

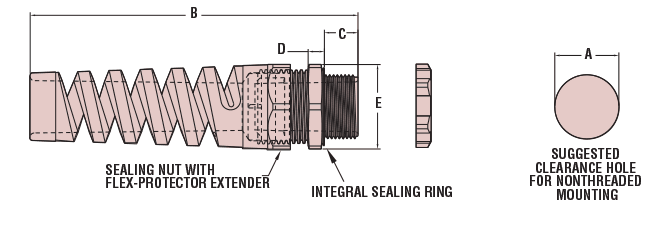

CABLE DIA. RANGE				PART NO.			DESCRIPTION	or	PART DIMENSIONS
Minimum		Maximum		Including Nylon Nut **	No Nut				A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D		E
															Wrenching Nut
															Thk.		Flat Size
in.	mm.	in.	mm.	Black	Black	Gray			in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
.065	1,7	.210	5,3	M3464	M4780	M4781	Flex RLTCG 7		.492	12,5	2.44	62,0	.32	8,1	.21	5,3	.63	16,0
.115	2,9	.250	6,4	M3237	M4778	M4779	Flex LTCG 7		.492	12,5	2.44	62,0	.32	8,1	.21	5,3	.63	16,0
.065	1,7	.230	5,8	M3466	M4784	M4785	Flex RLTCG 9		.599	15,2	2.77	70,4	.32	8,1	.21	5,3	.82	20,8
.105	2,7	.315	8,0	M3240	M4782	M4783	Flex LTCG 9		.599	15,2	2.77	70,4	.32	8,1	.21	5,3	.82	20,8
.069	1,8	.250	6,6	M3468	M4788	M4789	Flex RLTCG 11		.733	18,6	3.46	87,9	.38	9,7	.21	5,3	.94	23,9
.230	5,8	.395	10,0	M3243	M4786	M4787	Flex LTCG 11		.733	18,6	3.46	87,9	.38	9,7	.21	5,3	.94	23,9
.095	2,4	.290	7,4	M4526	M4530	M4531	Flex RLTCG 13.5		.804	20,4	3.89	98,8	.41	10,4	.21	5,3	.98	24,9
.170	4,3	.450	11,4	M3246	M4790	M4791	Flex LTCG 13.5		.804	20,4	3.89	98,8	.41	10,4	.21	5,3	.98	24,9
.180	4,6	.400	10,2	M4528	M4532	M4533	Flex RLTCG 16		.886	22,5	4.37	111,0	.44	11,2	.25	6,4	1.06	26,9
.260	6,6	.545	13,8	M3249	M4792	M4793	Flex LTCG 16		.886	22,5	4.37	111,0	.44	11,2	.25	6,4	1.06	26,9
.250	6,4	.490	12,4	M3478ST	-	-	Flex RLTCG 21 ST	-	1.115	28,3	4.95	125,7	.43 †	10,9	.25	6,4	1.30	33,0
.435	11,1	.705	17,9	M3245ST	-	-	Flex LTCG 21 ST	-	1.115	28,3	4.95	125,7	.43 †	10,9	.25	6,4	1.30	33,0
.250	6,4	.490	12,4	M3478	M4796	M4797	Flex RLTCG 21		1.115	28,3	5.04	128,0	.52	13,2	.25	6,4	1.30	33,0
.435	11,1	.705	17,9	M3245	M4794	M4795	Flex LTCG 21		1.115	28,3	5.04	128,0	.52	13,2	.25	6,4	1.30	33,0

Standard color black. * Steel conduit threads per DIN 40430, click here ** Nylon Locknuts shipped unassembled. † .43" (10,9 mm) Shorty LTCG Thread Length

Features

Flexible Pigtail extender prevents sharp bends and extends cable life.
Integral Sealing Ring ensures a superior seal at the clearance or threaded
mounting hole location, every time.
Widest range of approved cable diameters.
IP 68 rated.
Approved for NEMA 4, 4X, 6 and 6P applications.
Ratchet design of sealing nut assembly provides superior anti-vibration protection and ensures a firm grip on the cable.
Acme threads on body prevent skipping and speed installation.
All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
Multiple sizes for flexible cord diameters ranging from .065″ (1,7 mm) to .705″ (17,9 mm).
We recommend using the fitting with the smallest maximum diameter that will fit your application.
Unassembled Nylon Locknuts INCLUDED.
For Heyco Liquid Tight Threaded Plugs, click here.
Consult Heyco for cordgrips molded in other colors.

QuickSpecs

Material		Nylon 6/6 w/Buna N or TPE Sealing Gland
Certifications		Listed under Underwriters’ Laboratories File E51579 (Standard Thread Only)
		Recognized under Components Program of Underwriters’ Laboratories File E51579 (Standard Thread Only)
		Certified by Canadian Standard Association File 93876C (Standard Thread Only)
		Approved for NEMA 4, 4X, 6 and 6P applications
Flammability Rating		94V-2
Temperature Range		Static -40°F (-40°C) to 239°F (115°C)
Temperature Range		Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating		IP 68 (70 PSI, 5 BAR)
