Heyco®-Tite Liquid Tight Cordgrips Pigtail, NPT Hubs

Part number and specification

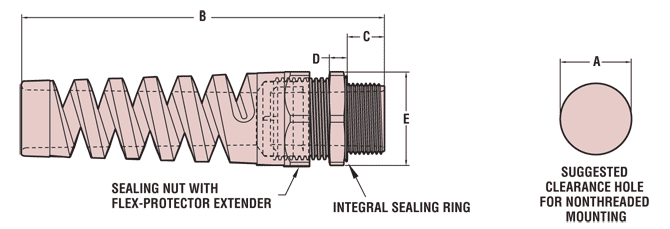

CABLE DIA. RANGE				PART NO.		DESCRIPTION	PART DIMENSIONS
CABLE DIA. RANGE				Locknuts Not Included*			A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Thk.		E Wrenching Nut Flat Size
Minimum		Maximum		Black	Gray		A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Thk.		E Wrenching Nut Flat Size
in.	mm.	in.	mm.	Black	Gray		in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
.065	1,7	.210	5,3	M4536	M4537	Flex RLTCG 1/4	.540	13,7	2.57	65,3	.45	11,4	.21	5,3	.63	16,0
.115	2,9	.250	6,4	M4538	M4539	Flex LTCG 1/4	.540	13,7	2.57	65,3	.45	11,4	.21	5,3	.63	16,0
.065	1,7	.230	5,8	M3474	M3475	Flex RLTCG 3/8	.680	17,3	2.94	74,7	.49	12,4	.21	5,3	.82	20,8
.105	2,7	.315	8,0	M3254	M3255	Flex LTCG 3/8	.680	17,3	2.94	74,7	.49	12,4	.21	5,3	.82	20,8
.095	2,4	.290	7,4	M4540	M4541	Flex RLTCG 1/2	.875	22,2	4.09	103,9	.61	15,5	.21	5,3	.98	24,9
.170	4,3	.450	11,4	M3251	M3252	Flex LTCG 1/2	.875	22,2	4.09	103,9	.61	15,5	.21	5,3	.98	24,9
.260	6,6	.546	13,9	M3266	M3267	Flex LTCG LL 1/2	.875	22,2	4.37	111,0	.44	11,2	.25	6,4	1.06	26,9
.250	6,4	.490	12,4	M3462	M3463	Flex RLTCG 3/4	1.109	28,2	5.15	130,8	.62	15,7	.25	6,4	1.30	33,0
.435	11,0	.705	17,9	M3239	M3242	Flex LTCG 3/4	1.109	28,2	5.15	130,8	.62	15,7	.25	6,4	1.30	33,0

Standard color black. *To order Nylon or Metal Locknuts separately, see NPT Nylon Locknuts and NPT Metal Locknuts.

Features

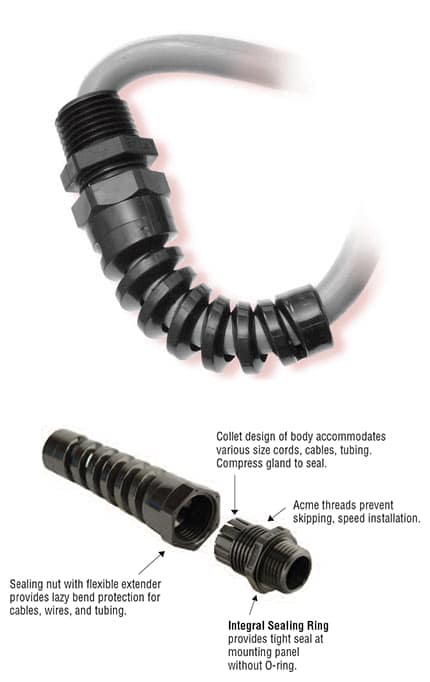

Flexible Pigtail extender prevents sharp bends and extends cable life.
Integral Sealing Ring ensures a superior seal at the clearance or threaded
mounting hole location, every time.
Widest range of approved cable diameters.
IP 68 rated.
Approved for NEMA 4, 4X, 6 and 6P applications.
Ratchet design of sealing nut assembly provides superior anti-vibration protection and ensures a firm grip on the cable.
Acme threads on body prevent skipping and speed installation.
All nylon construction with Buna N or TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
Multiple sizes for flexible cord diameters ranging from .065″ (1,7 mm) to .705″ (17,9 mm).
We recommend using the fitting with the smallest maximum diameter that will fit your application.
Locknuts not included. For nylon locknut specifications or to order locknuts separately, see NPT Nylon Locknuts.
See Heyco Liquid Tight Threaded Plugs.
Consult Heyco for cordgrips molded in other colors.

Material		Nylon 6/6 w/Buna N or TPE Sealing Gland
Certifications		Listed under Underwriters’ Laboratories File E51579
		Recognized under the Component Program of Underwriters’ Laboratories File E51579
		Certified by Canadian Standard Association File 93876C
		Approved for NEMA 4, 4X, 6 and 6P applications
Flammability Rating		94V-2
Temperature Range		Static -40°F (-40°C) to 239°F (115°C)
Temperature Range		Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating		IP 68 (70 PSI, 5 BAR)
