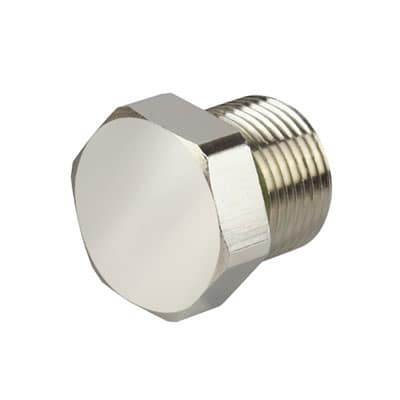

Heyco®-Tite Brass Locking Plugs, Metric Hubs

Specifications

Part number and specification

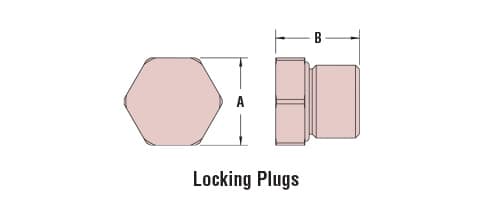

THREAD TYPE / SIZE PART NO. DESCRIPTION PART DIMENSIONS
A Wrenching Flats B Overall Length
in. mm. in. mm.
M12 x 1,5 14691 BRASS TPX M12 .59 15,0 .79 20,0
M16 x 1,5 14692 BRASS TPX M16 .71 18,0 .83 21,0
M20 x 1,5 14693 BRASS TPX M20 .94 24,0 .91 23,0
M25 x 1,5 14694 BRASS TPX M25 1.18 30,0 .98 25,0
M32 x 1,5 14695 BRASS TPX M32 1.42 36,0 1.06 27,0
M40 x 1,5 14696 BRASS TPX M40 1.81 46,0
M50 x 1,5 14697 BRASS TPX M50 2.17 55,0
M63 x 1,5 14698 BRASS TPX M63 2.76 70,0



Features

  • Suitable for flameproof enclosures Ex d 11C
  • IEXEx Certificate: 1ECEx PTB 12.0056
  • Certified for category 2G:
    II 2G Ex db eb IIC
  • Certified for category 2D:
    II 2D Ex ta IIIC
  • Zone: Gas 1 and 2/dust 21 and 22

QuickSpecs

Material Nickel-Plated Brass Body w/FPM O-Ring
Temperature Range -40°F (-40°C) to 212°F (100°C)
IP Rating IP 69K
