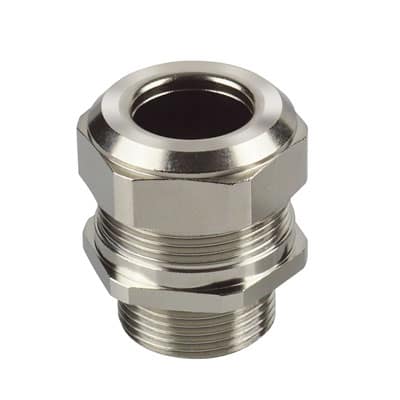

Heyco®-Tite Brass Liquid Tight Cordgrips – Metric Hubs – Explosion Proof

Explosion Proof for Hazardous Locations The Ultimate in Liquid Tight Strain Relief Protection
Download Datasheet
Specifications

Part number and specification

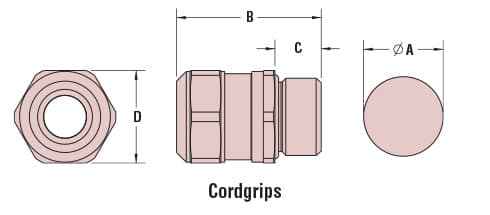

CABLE DIAMETER RANGE PART NO. THREAD SIZE PART DIMENSIONS
Minimum Maximum A Clearance Hole Dia. B Max. O.A. Length C Thread Length D Wrenching Flat Size
in. mm. in. mm. in. mm. in. mm. in. mm. in. mm.
.118 3,0 .276 7,0 14830 M16 x 1,5 .630 16,0 1.50 38,0 .47 12,0 .83 21,0
.197 5,0 .394 10,0 14831 .630 16,0 1.50 38,0 .47 12,0 .94 24,0
.197 5,0 .433 11,0 14832 M20 x 1,5 .787 20,0 1.50 38,0 .47 12,0 .94 24,0
.354 9,0 .551 14,0 14833 .787 20,0 1.50 38,0 .47 12,0 1.18 30,0
.295 7,5 .591 15,0 14834 M25 x 1,5 .984 25,0 1.57 40,0 .47 12,0 1.26 32,0
.492 12,5 .709 18,0 14835
.669 17,0 .906 23,0 14836 M32 x 1,5 1.260 32,0 1.77 45,0 .47 12,0 1.61 41,0
.827 21,0 1.024 26,0 14837
.827 21,0 1.024 26,0 14838 M40 x 1,5 1.575 40,0 1.85 47,0 .55 14,0 1.61 41,0
.945 24,0 1.260 32,0 14839 1.575 40,0 1.89 48,0 .55 14,0 1.97 50,0
1.102 28,0 1.417 36,0 14840 M50 x 1,5 1.968 50,0 1.89 48,0 .55 14,0 2.17 55,0
1.378 35,0 1.654 42,0 14841 1.968 50,0 1.93 49,0 .55 14,0 2.36 60,0
1.417 36,0 1.732 44,0 14842 M63 x 1,5 2.480 63,0 1.93 49,0 .55 14,0 2.56 65,0
1.693 43,0 1.968 50,0 14843 2.480 63,0 1.93 49,0 .55 14,0 2.76 70,0



Features

  • Suitable for flameproof enclosures Ex d 11C and increased safety Ex e 11
  • Certificate: EC-type examination certificate PTB 10 ATEX 1034X
  • Certificate: IECEx Certificate: IECEX PTB 12.0055x
  • Certified for category 2G:
    II 2G Ex db eb IIC
  • Certified for category 2D:
    II 2D Ex ta IIIC
  • Zone: Gas 1 and 2/dust 21 and 22

QuickSpecs

Material Nickel-Plated Brass Body w/NBR Seal
Temperature Range -76°F (-60°C) to 221°F (105°C)
IP Rating IP 68, IP 69K
