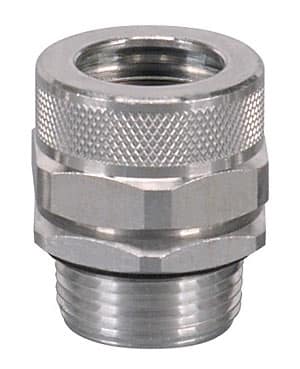

Heyco®-Tite Aluminum Liquid Tight Cordgrips – NPT 1-1/2 thru 2

Straight-Thru, NPT Hubs The Ultimate in Liquid Tight Strain Relief Protection

Specifications

Part number and specification

Assembled O-ring INCLUDED. *Not UL Listed or CSA Certified Locknut not included - see NPT Metal Locknuts.

Aluminum construction provides excellent durability and performance for most industrial applications.
For use in both indoor and outdoor applications to prevent cable pull-out, control arc of bend, and to provide a tight seal against environmental elements such as dirt, moisture, and coolants.
IP 67 rated.
Protect cable from damage and pull-out and are used in conduit hubs or knock-outs at the point where the electrical cable is to be terminated.
Unique design with a combination tightening surface that includes both a hex area and a knurled surface.
Anti-friction washer allows for easier compression.
DFARS Compliant

Material		Aluminum with Neoprene Sealing Gland and Viton® O-Ring
Certifications		Listed under Underwriters’ Laboratories File E51579
Certifications		Certified by Canadian Standard Association File 258093
Flammability Rating		94V-2
Temperature Range		-40°F (-40°C) to 250°F (121°C)
IP Rating		IP 67

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
