Heyco® Original Series-35 Liquid Tight Cordgrips Pigtail, NPT Hubs

Part number and specification

CABLE DIA. RANGE				PART NO. Locknuts Not Included*		DESCRIPTION	PART DIMENSIONS

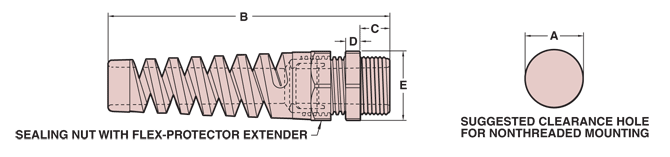

CABLE DIA. RANGE				PART NO. Locknuts Not Included*			A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Thk.		E Wrenching Nut Flat Size
Minimum		Maximum		Black	Gray		A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Thk.		E Wrenching Nut Flat Size
in.	mm.	in.	mm.	Black	Gray		in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
.069	1,8	.187	4,7	3474	3475	FLEX RLTF 3/8	.670	17,0	2.97	75,4	.53	13,5	.20	5,1	.75	19,1
.181	4,6	.312	7,9	3254	3255	FLEX LTF 3/8	.670	17,0	2.97	75,4	.53	13,5	.20	5,1	.75	19,1
.170	4,3	.470	11,9	3251	3252	FLEX LTF 1/2	.875	22,2	4.09	103,9	.62	15,7	.20	5,1	.95	24,1
.230	5,8	.546	13,9	3266	3267	FLEX LLTF 1/2	.875	22,2	4.54	115,3	.62	15,7	.23	5,8	1.05	26,7
.250	6,4	.485	12,3	3462	3463	FLEX RLTF 3/4	1.109	28,2	5.14	130,6	.63	16,0	.23	5,8	1.30	33,0
.450	11,4	.709	18,0	3239	3242	FLEX LTF 3/4	1.109	28,2	5.14	130,6	.63	16,0	.23	5,8	1.30	33,0

Standard colors black and gray. *To order Nylon or Metal Locknuts separately, see NPT Nylon Locknuts and NPT Metal Locknuts.

Features

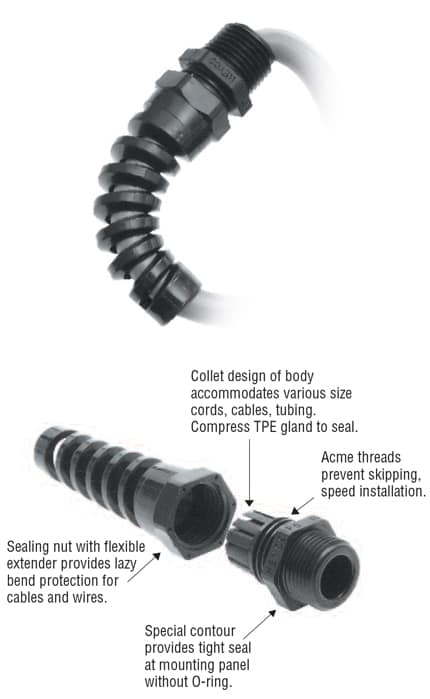

Flexible Pigtail™ extender prevents sharp bends and extends cable life.
IP 68 rated.
Widest range of approved cable diameters.
For use in clearance or threaded holes.
Acme threads on body prevent skipping and speed installation.
All nylon construction with TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
Multiple sizes for flexible cord diameters ranging from .069″ (1,8 mm) to .709″ (18,0 mm).
We recommend using the fitting with the smallest maximum diameter that will fit your application.
Locknuts not included. For nylon locknut specifications or to order locknuts separately, see NPT Nylon Locknuts.
For Heyco Liquid Tight Threaded Plugs, click here.
Consult Heyco for cordgrips molded in other colors.

Material		Nylon 6/6 w/TPE Sealing Gland
Certifications		Listed under Underwriters’ Laboratories File E51579
		Recognized under the Component Program of Underwriters’ Laboratories File E51579
		Certified by Canadian Standards Association File 93876C
Flammability Rating		94V-2
Temperature Range		Static -40°F (-40°C) to 239°F (115°C)
Temperature Range		Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating		IP 68 (70 PSI, 5 BAR)
