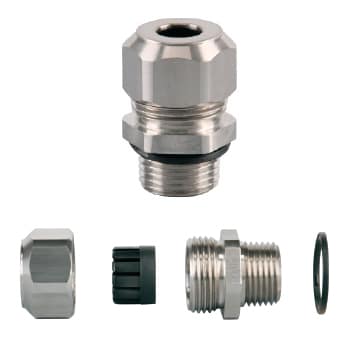

HEYbrid™ Stainless Steel Liquid Tight Cordgrips - Metric Hubs

Part number and specification

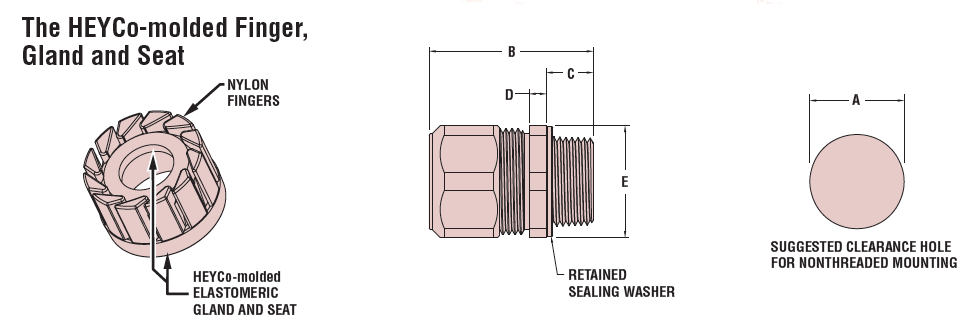

CABLE DIA. RANGE				PART NO.	DESCRIPTION	PART DIMENSIONS
						A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D		E
												Wrenching Nut
Minimum		Maximum										Thickness		Flat Size
in.	mm.	in.	mm.			in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
HEYco-molded Finger/Gland
.065	1,7	.210	5,3	M6060	RSSCG M12	.473	12,0	1.23	31,2	.34	8,6	.20	5,1	.75	19,1
.115	2,9	.250	6,4	M6061	SSCG M12	.473	12,0	1.23	31,2	.34	8,6	.20	5,1	.75	19,1
.065	1,7	.230	5,8	M6062	RSSCG M16	.630	16,0	1.31	33,3	.34	8,6	.20	5,1	.88	22,4
.105	2,7	.315	8,0	M6063	SSCG M16	.630	16,0	1.31	33,3	.34	8,6	.20	5,1	.88	22,4
.095	2,4	.290	7,4	M6066	RSSCG M20	.787	20,0	1.58	42,9	.42	13,5	.20	5,1	1.06	26,9
.170	4,3	.450	11,4	M6067	SSCG M20	.787	20,0	1.58	42,9	.42	13,5	.20	5,1	1.06	26,9
.180	4,6	.400	10,2	M6068	RSSCG LL M20	.787	20,0	1.70	43,2	.42	10,7	.20	5,1	1.25	31,8
.260	6,6	.545	13,8	M6069	SSCG LL M20	.787	20,0	1.70	43,2	.42	10,7	.20	5,1	1.25	31,8
.250	6,4	.490	12,4	M6070	RSSCG M25	.985	25,0	1.91	48,5	.53	13,5	.20	5,1	1.31	33,3
.435	11,0	.705	17,9	M6071	SSCG M25	.985	25,0	1.91	48,5	.53	13,5	.20	5,1	1.31	33,3
.490	12,4	.785	19,9	M6072	RSSCG M32	1.260	32,0	2.19	55,6	.59	15,0	.20	5,1	1.75	44,5
.590	15,0	1.000	25,4	M6073	SSCG M32	1.260	32,0	2.19	55,6	.59	15,0	.20	5,1	1.75	44,5

Features

HEYCo-molded gripping finger/gland technology accommodates the widest cable range over the fewest sku’s.
Rolled grease-free threads prevent galling and allow for multiple assemblies and disassemblies. No messy, unsightly thread lubrication required.
Approved for NEMA 4, 4X, 6 and 6P applications.
Self-retaining sealing rings eliminate the need for an O-Ring groove, thus reducing cost.
Typical applications: Control cabinets, marine, car washes, hot tubs, instrumentation, carpet cleaning machines, food processing equipment, underground for direct burial or submersed up to 130 ft. (70 PSIG).
Ideal for corrosive environments.
Constructed from corrosion resistant 303 stainless steel.
Resistant to salt water, acids and most chemicals.
Locknuts not included. To order locknuts separately, Metric Metal Locknuts.
Patent pending.
DFARS Compliant

Material		303 Stainless Steel Body and sealing nut with nylon 6/6 and TPE co-molded finger/gland assembly SBR Sealing Washer
Certifications		Listed under Underwriters’ Laboratories File E51579
Certifications		Recognized under Underwriters’ Laboratories File E51579
Flammability Rating		94V-2
Temperature Range		-40°F (-40°C) to 221°F (105°C)
IP Rating		IP 68 (70 PSI, 5 BAR)

HEYbrid™ Stainless Steel Liquid Tight Cordgrips – Metric Hubs
