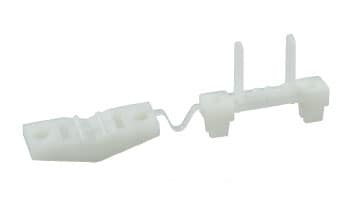

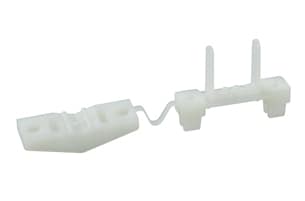

Heyco® Hinged Locking Cable Clamps

Specifications

Part number and specification

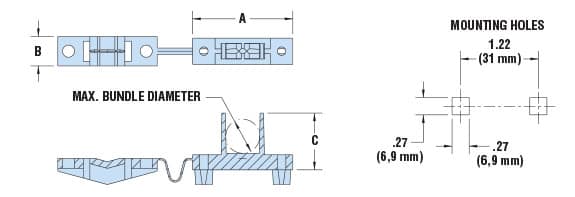

MAXIMUM BUNDLE DIA.		PANEL THICKNESS RANGE				PART NO.	DESCRIPTION	PART DIMENSIONS
		Minimum		Maximum		Natural		A Length		B Width		C Height
		in.	mm.	in.	mm.	Natural		in.	mm.	in.	mm.	in.	mm.
.47	12,0	.031	0,8	.047	1,2	12666	CCHL-47-047	1.72	43,7	.47	12,0	1.04	26,5
.59	15,1	.024	0,6	.059	1,5	12665	CCHL-59-059	1.57	39,8	.46	11,8	.94	24,0

Standard colors natural.

Locking hinged design holds cables securely in place white providing strain relief.
Prevents vibration from disrupting cables.

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
