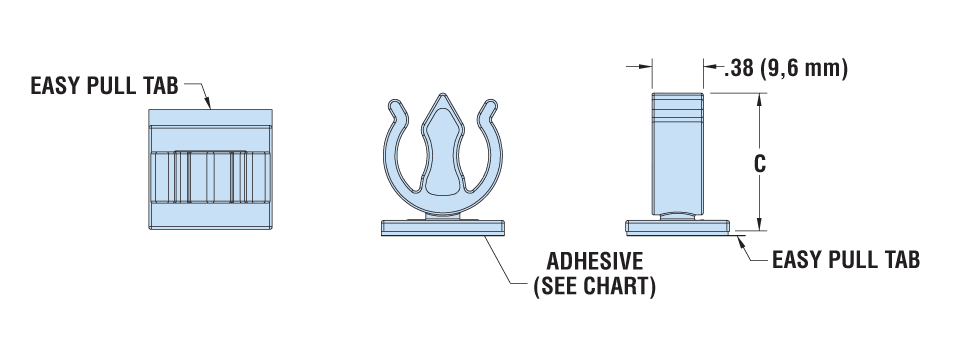

| WIRE DIAMETER RANGE 1-2 Wires | Color | PART NO. Adhesive Type | DESC. | FOOT PRINT | OVERALL HEIGHT C | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rubber | Acrylic | VHB | ||||||||||
| Bulk | 100 pack | Bulk | 100 pack | Bulk | 100 pack | in. | mm. | in. | mm. | |||
1-2 Wires |
||||||||||||
| .230 (5,8 mm) - .315 (8,0 mm) each cable | Black | S6561 | S6521 | S6561A | S6521A | S6561V | S6521V | Helios AB | .90 x .76 | 22,9 x 19,3 | 1.04 | 26,4 |
| Natural | 11970 | * | 11970A | * | 11970V | * | ||||||
| V-0 Black | 11970F | * | 11970FA | * | 11970FV | * | ||||||
| Materials | Temp Range | |
| Natural | UL94 Nylon 6/6 V-2 Natural | 32°F (0°C) to 185°F (85°C) |
|---|---|---|
| UV | UL94 V-2 Nylon 6/6 Black, UV Rated | -4°F (-20°C) to 185°F (85°C) |
| V-0 | UL94 V-0 Nylon 6/6 | -40°F (-40°C) to 221°F (105°C) |
| Rubber Adhesive | 50°F (10°C) to 155°F (68°C) | |
| Acrylic Adhesive | 10°F (-12°C) to 180°F (82°C) | |
| VHB Adhesive | -40°F (-40°C) to 194°F (90°C) | |
|
(Low temperature reflects minimum application temperature for adhesives)
|
||
