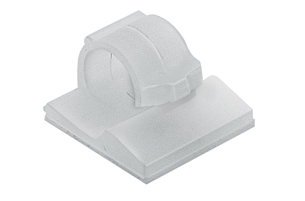

HEYClip™ Tension Wire Clips - Nylon

Part number and specification

WIRE CAPACITY				PART NO. Natural *	DESCRIPTION	RELEASE TAB?	PART DIMENSIONS						STYLE
Length		Width					Length		Width		Height
in.	mm.	in.	mm.				in.	mm.	in.	mm.	in.	mm.
.13	3,2	.25	6,4	3638	WC A-4	no	.63	15,9	.63	15,9	.25	6,4	1
.13	3,2	.50	12,7	3639	WC A-5 **	no	1.15	29,2	1.00	25,4	.28	7,1	2
.12	3,0	.62	15,8	3649	TCN3-801 **	yes	1.00	25,4	1.00	25,4	.29	7,4	3
Bundle Dia. - .19 in, 4,8 mm				3628	WC A-42	no	.61	15,5	.61	15,5	.28	7,1	9
.25	6,4	.88	22,4	12950	TCN4-804 Gray	yes	.59	15,0	1.02	25,8	.41	10,3	4
.25	6,4	.88	22,4	12951	TCN4-805	yes	.59	15,0	1.02	25,8	.41	10,3	4
.24	6,0	.19	4,7	12953	TCN5-2419	yes	.63	16,0	.45	11,4	.32	8,1	5
.31	8,0	.19	4,7	12954	TCN5-3119	yes	.63	16,0	.53	13,4	.32	8,1
.32	8,2	.20	5,2	12955	TCN5-3220	yes	.63	16,0	.15	14,4	.34	8,7
.35	9,0	.19	4,8	12956	TCN5-3519	yes	.63	16,0	.57	14,4	.33	8,3
.35	9,0	.20	5,2	12957	TCN5-3520	yes	.55	14,0	.51	13,0	.34	8,7
.40	10,2	.26	6,7	12959	TCN5-4026	yes	.63	16,0	.67	16,9	.40	10,2
.17	4,3	.10	2,5	12961	TCN6-1710	yes	.39	10,0	.37	9,5	.23	5,9	6
.25	6,3	.10	2,5	12962	TCN6-2510	yes	.47	12,0	.37	9,5	.25	6,3
.33	8,4	.10	2,5	12963	TCN6-3310	yes	.49	12,5	.37	9,5	.24	6,0
.32	8,2	.10	2,5	12964	TCN6-3210	yes	.50	12,7	.50	12,7	.25	6,3
.41	10,3	.10	2,5	12965	TCN6-4110	yes	.57	14,5	.37	9,5	.25	6,4
.46	11,6	.12	3,1	12966	TCN6-4612	yes	.66	16,7	.51	13,0	.26	6,6
.31	7,9	.24	6,0	12968	TCN7-3124	yes	.59	14,9	.75	19,0	.37	9,5	7
.35	9,0	.24	6,0	12969	TCN7-3524	yes	.63	16,0	.75	19,0	.37	9,5
.46	11,8	.31	7,9	12971	TCN7-4631	yes	.75	19,0	.75	19,0	.46	11,8
.54	13,7	.33	8,3	12972	TCN7-5433	yes	.82	20,9	.75	19,0	.48	12,1
Bundle Dia. - .19 in, 4,8 mm				3629	WC A-43	no	.63	15,9	.63	15,9	.31	7,9	8
.22	5,5	.24	6,1	3636	WC A-44	no	.63	15,9	.63	15,9	.38	9,5
.35	8,9	.36	9,1	3637	WC A-46	yes	.75	19,1	.75	19,1	.50	12,7
.46	11,7	.31	7,9	12974	TCN8-4631	yes	1.00	25,4	.61	15,6	.48	12,2
.46	11,8	.31	7,9	12975	TCN8-4631-1	yes	1.00	25,4	1.00	25,4	.48	12,1

* Standard color natural except Part No. 12950 color is Gray. ** Part Nos. 3639 and 3649 may also be #8 (M4) screw mounted.

Features

Gather and direct cables singly or in groups smaller than those accommodated by other Heyco Wire Holders.
Part No. 3639 (WCA-5) may also be screw mounted. #8 screws not included.
Apply to a clean, dry surface.

QuickSpecs

Material	Nylon 6/6
Flammability Rating	94V-2
Temperature Range	32°F (0°C) to 185°F (85°C)
