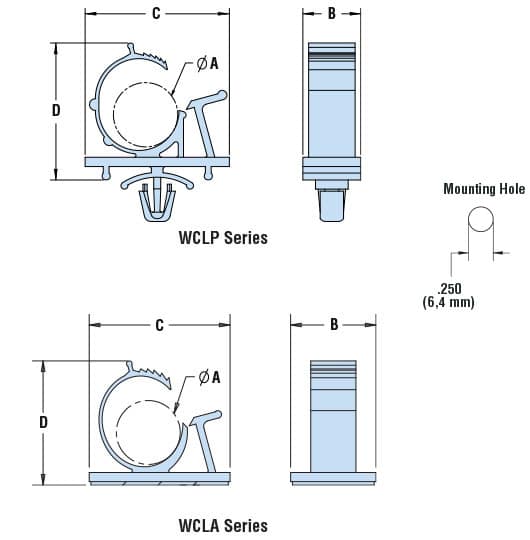

| MAXIMUM BUNDLE DIAMETER RANGE A |
PART NO. | DESCRIPTION | PART DIMENSIONS |
PANEL THICKNESS |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Minimum | Maximum | Natural | Black | Natural UL 94V-0 |
B | C | D* | Minimum | Maximum | ||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||||
| .31 | 7,9 | .40 | 10,2 | 4334 | 4334B | 4334F | WCLP 375 | .35 | 8,9 | .75 | 19,1 | .94 | 23,8 | .031 | 0,8 | .059 | 1,5 |
| .47 | 11,9 | .55 | 14,0 | 4335 | 4335B | 4335F | WCLP 562 | .50 | 12,7 | 1.24 | 31,5 | 1.17 | 29,8 | ||||
| .58 | 14,7 | .75 | 19,1 | 4336 | 4336B | 4336F | WCLP 750 | .50 | 12,7 | 1.48 | 37,6 | 1.36 | 34,5 | ||||
Standard color natural or black.
*At maximum wire capacity.

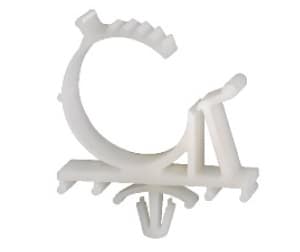

WCLP Series
| WCLP | WCLA/WCLP | |
| Material | Nylon 6/6 | Nylon 6/6 |
| Flammability Rating | 94V-0 | 94V-2 |
| Temperature Range | -40°F (-40°C) to 185°F (85°C) | -40°F (-40°C) to 185°F (85°C) |
