HEYClip™ Cable Holders - Hinged

Specifications

Part number and specification

WIRE CAPACITY		PART NO. Natural	DESCRIPTION	PART DIMENSIONS

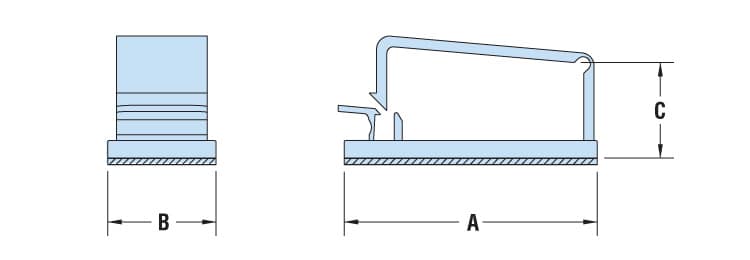

WIRE CAPACITY				A Length		B Width		C Height		D MH Spacing
in.	mm.			in.	mm.	in.	mm.	in.	mm.	in.	mm
Double Arrowhead Mount For Panels from .030" (0,8 mm) to .039" (1,0 mm) Thick
.37 x 1.11	28,1 x 9,3	12136	CH H-37-111	1.57	40,0	.31	8,0	.52	13,3	.787	20,0
		For Panels up to .118" (3,0 mm) Thick
.55 x .75	19,1 x 13,9	12139	CH H-55-75	1.22	31,0	.31	8,0	.73	18,6	.630	16,0

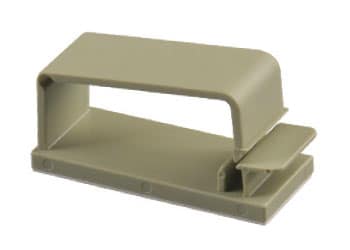

Adhesive Back Mount
.25 x 1.25	5,6 x 31,8	3395	CH HA-25-125*	1.75	44,5	.75	19,1	.50	12,7
.50 x 1.25	11,2 x 31,8	3309	CH HA-50-125*	1.75	44,5	.75	19,1	.70	17,8
.25 x 2.50	12,7 x 63,5	3397	CH HA-25-250	3.00	76,2	.75	19,1	.50	12,7

Standard color Natural. * Standard color Gray.
