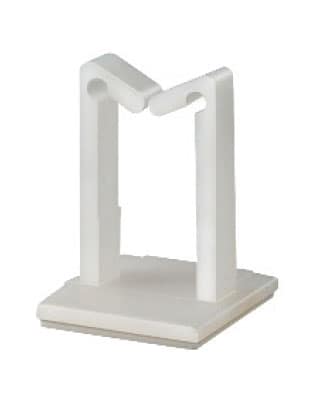

HEYClip™ Cable Holders – Adhesive Back Mount

Download Datasheet
Specifications

Part number and specification

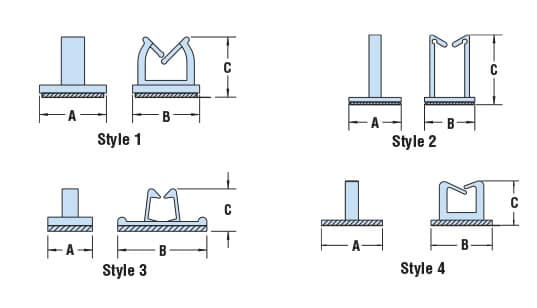

WIRE CAPACITY PART NO. DESCRIPTION OVERALL HEIGHT C FOOTPRINT A x B Style
Rubber Acrylic VHB
in. mm. Natural in. mm. in. mm.

CH RA Series
.17 x .12 4,4 x 3,0 4271 - - CH RA-72 .31 7,9 .37 x .37 9,4 x 9,4 4
.18 x .04 4,6 x 1,0 - 4212A 4212V CH RA-65 .26 6,5 .37 x .37 9,4 x 9,4 1
.18 x .11 4,6 x 2,8 - 4213A 4213V CH RA-83 .33 8,3
.25 x .13 6,4 x 3,2 4214 4214A 4214V CH RA-102 .40 10,2 .50 x .50 12,7 x 12,7
.31 x .16 7,9 x 4,1 4215 4215A 4215V CH RA-119 .47 11,9
.35 x .24 8,9 x 6,1 4216 4216A 4216V CH RA-141 .56 14,1
.35 x .31 8,9 x 7,9 - 4217A 4217V CH RA-157 .62 15,7
.45 x .19 11,4 x 4,7 3603 3603A 3603V CH RA-122 .47 12,0 .76 x .74 19,3 x 18,8 2
.45 x .38 11,4 x 9,5 3608 3608A 3608V CH RA-172 .68 17,2
.45 x .75 11,4 x 19,0 3613 3613A 3613V CH RA-267 1.05 26,7
.29 x .25 7,4 x 6,4 3614 - - CH RA-121 .48 21,1 .50 x 1.00 12,7 x 25,4 3
Standard color natural. Flame retardant UL 94V-0 material available, consult Heyco.



Features

  • Gather and direct single or bundles of cable.
  • Apply to a clean, dry surface.
  • Part Description Key: CH RA-X, where X = Overall Height (mm).
  • Part Description Key: CH RA-X, where X = Overall Height (mm).
  • Clips without suffix have a load rating of 1 pound per square inch
  • Clips with suffix “A” have a load rating of 6 pounds per square inch
  • Clips with suffix “V” have a load rating of 105 pounds per square inch
Material Nylon 6/6 Adhesives*
Flammability Rating 94V-2 Rubber Adhesive
50°F (10°C) to 155°F (68°C)
Acrylic Adhesive
10°F (-12°C) to 180°F (82°C)
VHB Adhesives -40°F (-40°C) to 194°F (90°C)
Temperature Range 32°F (0°C) to 185°F (85°C)
*Low temperature reflects minimum application temperature for adhesives

Competitor Cross Reference
Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
