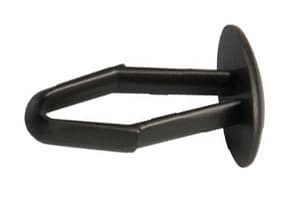

| WILL FIT THESE PANELS | PART NO. | DESCRIPTION | PART DIMENSIONS | CAD | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOUNTING HOLE DIAMETER | PANEL THICKNESS | Acetal | Nylon V-2 | Nylon V-0 | |||||||||||||||
| Minimum | Maximum | Black | Natural | Black | Natural | Black | Natural | A Length | B Head Height | C Head Length | |||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||||||||
| .125 | 3,2 | .04 | 1,0 | .18 | 4,5 | 9201 | 9202 | 9710 | 9711 | 9710F | 9711F | DF 125-039 | .51 | 13,0 | .06 | 1,5 | .31 | 8,0 |  |
| .154 | 3,9 | .04 | 1,0 | .20 | 5,0 | 9203 | 9204 | 9712 | 9713 | 9712F | 9713F | DF 154-039 | .55 | 14,0 | .06 | 1,6 | .35 | 9,0 | |
| .185 | 4,7 | .04 | 1,0 | .22 | 5,5 | 9205 | 9206 | 9714 | 9715 | 9714F | 9715F | DF 185-039 | .59 | 15,0 | .07 | 1,7 | .39 | 10,0 | |
| 9126 | 9127 | 9716 | 9717 | 9716F | 9717F | DF 185-039-1 | .59 | 15,0 | .11 | 2,9 | .43 | 11,0 | |
||||||
| .217 | 5,5 | .24 | 6,0 | .35 | 9,0 | 9209 | 9210 | 9718 | 9719 | 9718F | 9719F | DF 217-236 | .71 | 18,0 | .08 | 2,0 | .47 | 12,0 | |
| .250 | 6,4 | .06 | 1,5 | .26 | 6,5 | 9128 | 9129 | 9722 | 9723 | 9722F | 9723F | DF 250-059 | .67 | 17,0 | .08 | 2,0 | .47 | 12,0 | |
| .307 | 7,8 | .06 | 1,5 | .28 | 7,0 | 9207 | 9208 | 9720 | 9721 | 9720F | 9721F | DF 307-059 | .75 | 19,0 | .09 | 2,2 | .55 | 14,0 | |
| Material | Acetal (POM) | Nylon 6/6 |
|---|---|---|
| Flammability Rating | 94-HB | UL94 V0 *OR* UL94 V-2 |
| Temperature Range | -.4°F (-18°C) to 220°F (104°C) | -40°F (-40°C) to 185°F (85°C) |
