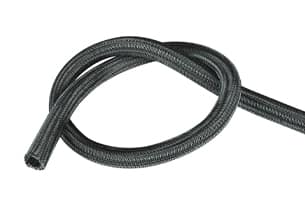

Heyco® Self-Closing Braided Sleeving

Part number and specification

Maximum Diameter		PART NO.	DESCRIPTION	PART DIMENSIONS				INSTALLATION TOOL
Maximum Diameter		Black		Nominal Diameter		Quantity Per Spool		Part No.
in.	mm.	Black		in.	mm.	ft.	m	Part No.
.28	7,0	8880	SCBS-250 BLACK	.25	6,4	100	30,5	8889
.39	10,0	8881	SCBS-375 BLACK	.38	9,7	100	30,5	8889
.55	14,0	8882	SCBS-500 BLACK	.50	12,7	100	30,5	8890
.67	17,0	8883	SCBS-625 BLACK	.63	16,0	100	30,5	8890
.79	20,0	8884	SCBS-750 BLACK	.75	19,1	100	30,5	8891
1.02	26,0	8885	SCBS-1000 BLACK	1.00	25,4	100	30,5	8892
1.30	33,0	8886	SCBS-1250 BLACK	1.25	31,8
1.57	40,0	8887	SCBS-1500 BLACK	1.50	38,1
2.05	52,0	8888	SCBS-2000 BLACK	2.00	50,8	100	30,5	*

*No tool provided for the 2.00″ bundle.

Features

Self-Closing Braided Sleeving (SCBS) can be used on pre-terminated wires due to the self closing concept. SCBS makes mainentance fast and effective. Simply open SCBS, make adjustments, and reinstall after service.

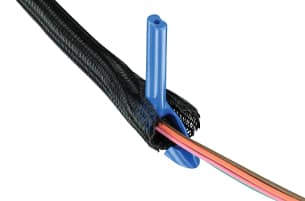

The installation tool makes routing wire fast and easy.
The 25% edge overlap allows coverage around inline connectors/plugs.
Full cable flexibility is maintained in any direction, even at low temperatures. Wires encased in Heyco Self Closing Braided Sleeving can flex and bend as readily as if they had no protective oversleeving. Bundles can be flexed repeatedly without damage.
Tough, cut-resistant sleeving is designed for protecting wire bundles and harnesses, hoses, tubing, and cable assemblies from mechanical damage and environmental hazards.
Preferred cutting method: hot knife.
