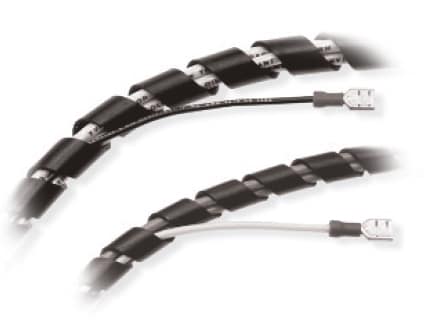

Heyco® Hose and Cable Wrap - Polyethylene, Standard

Part number and specification

BUNDLE RANGE				PART NO.		DESCRIPTION	PART DIMENSIONS

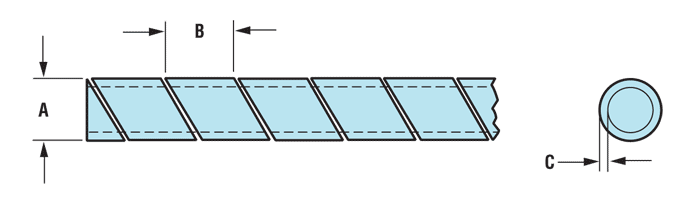

Minimum Diameter		Maximum Diameter		UV Black	Natural		A Outside Diameter		B Pitch		C Thickness
in.	mm.	in.	mm.	UV Black	Natural		in.	mm.	in.	mm.	in.	mm.
.13	3,2	1.50	38,1	8904	8905	CW 187 PE*	.19	4,8	.25	6,3	.03	0,8
.19	4,8	2.00	50,8	8908	8909	CW 250 PE	.25	6,3	.38	9,5	.05	1,3
.31	7,9	3.00	76,2	8912	8913	CW 375 PE	.38	9,5	.44	11,1	.05	1,3
.38	9,5	4.00	101,6	8916	8917	CW 500 PE	.50	12,7	.50	12,7	.06	1,6
.50	12,7	4.50	114,3	8920	8921	CW 625 PE*	.63	15,9	.63	15,9	.06	1,6
.50	12,7	5.00	127,0	8924	8925	CW 750 PE	.750	19,1	.75	19,1	.07	1,7
1.00	25,4	7.00	177,8	8928	8929	CW 1000 PE	1.00	25,4	1.00	25,4	.08	2,0

Standard colors UV black or natural. * Parts are not UR recognized.

Features

Easy to use: Just twist on wire!
Allows breakouts of single/multiple wires and re-routing of replacement wires.
Absorbs vibration, insulates cables, and resists abrasion.
Multiple sizes bundle and protect cables, wires, tubing, and hoses from .13″ (3,2 mm) to 7.00″ (177,8 mm) diameters.
Conforms to: Fed Spec LP390, Mil I-631D, Mil P-21922B
For hose and cable clamps, see
Nylon Cable Clamps,
Lockit™ Nylon Cable Clamps,
Nylon Wire Harness Clamps,
Nylon Lockit™ Hose Clamps,
Nylon Hose Clamps,
Air Tool,
Self-Aligning Nylon Cable Clamps,
Hinged Locking Cable Clamps,
Compression Cable Clamps,
Steel Cable Stays,
Stainless Steel Cable Clamps,
Steel Cushion Clamps,
Vinyl Coated Steel Clamps (Screw Mount & Adhesive Back), and
Vinyl Coated Steel Clamps (Spring Clamp).

Material		Polyethylene
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E173954
Temperature Range		-76°F (-60°C) to 190°F (88°C) UL rated temp not to exceed 122°F (50°C)
