| WILL FIT THESE PANELS | PART NO. | DESCRIPTION | PART DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOUNTING HOLE DIA. | ASSEMBLED PANEL THICKNESS | ||||||||||||||

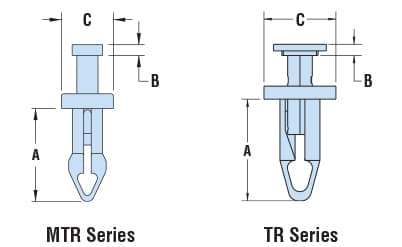

| Minimum | Maximum | Minimum | Maximum | Black | A Length Below Panel | B Head Height | C Head Diameter | ||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||

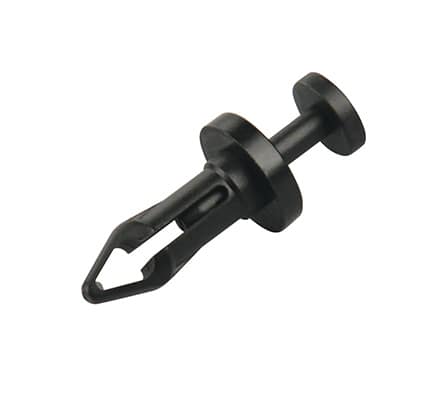

Mini - MTR Series |
|||||||||||||||
| .122 | 3,1 | .128 | 3,3 | .155 | 3,9 | .180 | 4,6 | 12475 | MTR 180-125 | .37 | 9,4 | .05 | 1,3 | .22 | 5,5 |
| .144 | 3,7 | .154 | 3,9 | .265 | 6,7 | .290 | 7,4 | 12477 | MTR 290-150 | .47 | 11,9 | .05 | 1,3 | .30 | 7,6 |
Standard - TR Series
|
|||||||||||||||
| .193 | 4,9 | .205 | 5,2 | .059 | 1,5 | .181 | 4,6 | 12466 | TR 181-199 | .45 | 11,3 | .08 | 2,1 | .28 | 7,2 |
| .250 | 6,4 | .276 | 7,0 | .098 | 2,5 | .315 | 8,0 | 12468 | TR 315-163 | .90 | 22,8 | .11 | 2,8 | .59 | 15,0 |
| .315 | 8,0 | .325 | 8,3 | .118 | 3,0 | .315 | 8,0 | 12469 | TR 315-320 | .83 | 21,1 | .09 | 2,3 | ||
| MTR | TR | |
| Material | Nylon 6/6 | Nylon 6/6 |
| Flammability Rating | UL 94 V-2 | UL 94 V-2 |
| Temperature Range | -22°F (-30°C) to 167°F (75°C) | -40°F (-40°C) to 185°F (85°C) |
