| WILL FIT THESE PANELS | PART NO. | DESCRIPTION | PART DIMENSIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOUNTING HOLE DIA. | ASSEMBLED PANEL THICKNESS | A Length | B Head Height | C Head Length | |||||||||
| Min. | Max. | ||||||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||
| .250 | 6,4 | .03 | 0,8 | .29 | 7,4 | 10677B | HPFP-1 BLACK | .41 | 10,4 | .08 | 2,0 | .72 | 18,3 |

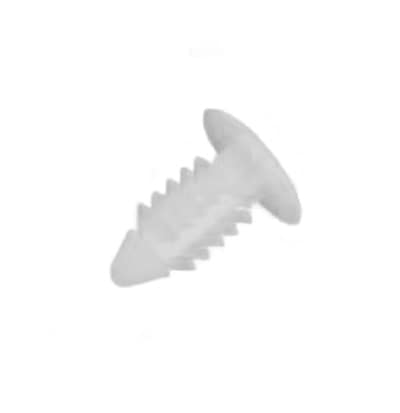

| .16 | 4,0 | .55 | 13,9 | 10676 | HPL-1 NATURAL | .63 | 15,9 | .08 | 2,0 | .50 | 12,7 | ||
| Material | Nylon 6/6 |
|---|---|
| Flammability Rating | 94V-2 |
| Temperature Range | -.4°F (-18°C) to 185°F (85°C) |
