HEYClip™ Nylon Kayak Clips

Maximum Assembled Panel Sequence
Download Datasheet
Specifications

Part number and specification


PANEL THICKNESS RANGE MOUNTING HOLE DIAMETER RANGE PART NO. DESCRIPTION PART DIMENSIONS Head Type Style CAD

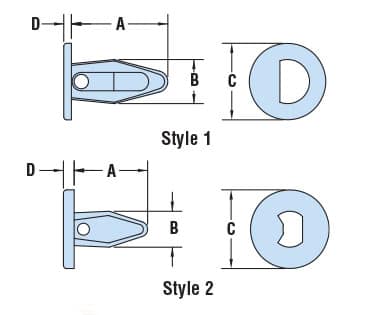

Maximum Minimum Maximum Minimum Natural A Length B Clip Dia. C Head Dia. D Head Height
in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm.

KC Series
.09 2,3 .06 1,5 .140 3,6 .135 3,4 4272 KC 09-14 .33 8,4 .16 4,1 .30 7,6 .06 1,5 TRUSS 2 CAD
.09 2,3 .06 1,5 .141 3,6 .131 3,3 4273 KC 09-14-1 .27 6,9 .16 4,1 .40 10,2 .15 3,8 ROUND CAD
.10 2,5 .08 2,0 .127 3,2 .123 3,1 4274 KC 10-13 .33 8,4 .13 3,3 .27 6,9 .24 6,1 TRUSS CAD
.13 3,3 .08 2,0 .141 3,6 .131 3,3 4275 KC 13-14 .37 9,4 .17 4,3 .41 10,4 .10 2,5 PAN 1 CAD
.205 5,2 .175 4,4 4276 KC 13-21 .43 10,9 .21 5,3 .50 12,7 .25 6,4 ROUND 2 CAD
.09 2,3 .200 5,1 .185 4,8 4277 KC 13-20 .44 11,2 .21 5,3 .37 9,4 .05 1,3 BINDING CAD
.14 3,6 .07 1,8 .150 3,8 .125 3,2 4278 KC 14-15 .43 10,9 .16 4,1 .30 7,6 .10 2,5 ROUND 1 CAD
.16 4,1 .10 2,5 .192 4,9 .182 4,6 4279 KC 16-19 .43 10,9 .21 5,3 .37 9,4 .06 1,5 TRUSS CAD
.09 2,3 .200 5,1 .185 4,7 4282 KC 16-20 .44 11,2 .21 5,3 .38 9,7 .06 1,5 BINDING 2 CAD
.21 5,3 .09 2,3 .220 5,6 .200 5,1 4283 KC 21-22 .50 12,7 .24 6,1 .52 13,2 .07 1,8 PAN CAD
.08 2,0 .275 7,0 .240 6,1 4284 KC 21-28 .63 16,0 .29 7,4 .50 12,7 .05 1,3 BINDING 1 CAD
.22 5,6 .10 2,5 .280 7,1 .245 6,2 4285 KC 22-28 .63 16,0 .29 7,4 .86 21,8 .09 2,3 TRUSS CAD
.260 6,6 .240 6,1 4286 KC 22-26 .46 11,7 .29 7,4 .45 11,4 .06 1,5 PAN CAD
Standard color natural. Consult Heyco for black and other colors.



Features

  • A low cost replacement for screws and rivets.
  • Snap into round mounting holes.
  • Fasten securely into a variety
    of materials.
  • Ideal for assembling lightweight panels and components.

QuickSpecs

Material Nylon 6/6
Flammability Rating 94V-2
Temperature Range 32°F (0°C) to 185°F (85°C)

Competitor Cross Reference
Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
