Heyco® Stainless Steel Edge Clip Nytye® Mounting Platforms

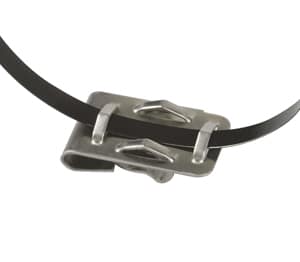

Stainless Steel Edge Clip Platforms

Specifications

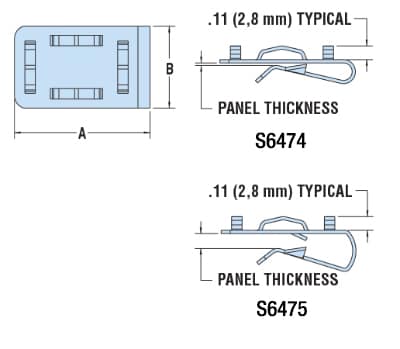

Part number and specification

MAX. CABLE TIE WIDTH*		PANEL THICKNESS RANGE				INSERT POINTS	PART NO.	DESCRIPTION	PART DIMENSIONS
MAX. CABLE TIE WIDTH*		Minimum		Maximum					A		B		C
Lbs.	N	in.	mm.	in.	mm.				in.	mm.	in.	mm.	in.	mm.
.31	8,0	.06	1,5	.13	.3,3	4	S6474	SunRunner CT	1.03	26,2	.63	16,0	.77	19,5
.31	8,0	.13	3,3	.25	6,4	4	S6475	SunRunner CT-EZ	1.03	26,2	.63	16,0	.77	19,5

*Edge Clip Platforms SunRunner CT and CT-EZ fit all Heyco Stainless Steel Cable Ties

Material		.025″ Thick 304 stainless steel
Certifications		Certified by UL for Compliance with both Canadian and US Requirements under File E54523

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
