Heyco® Nytye® Releasable Nylon Cable Ties

Specifications

Part number and specification

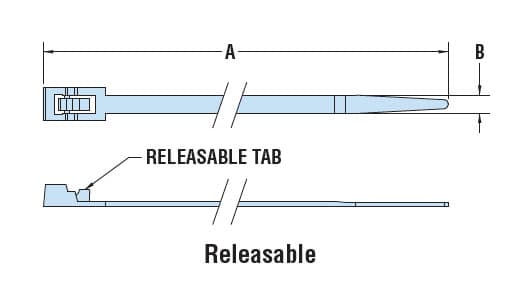

PART SPECIFICATIONS				PART NO.		DESCRIPTION	PART DIMENSIONS
Tensile Strength		Max. Bundle Diameter		Natural	UV Black		A Length		B Width
Lbs.	N	in.	mm.	Natural	UV Black		in.	mm.	in.	mm.
Releasable
40	178	1.46	37,0	13297	13297B	RNT-40-059	5.94	151	.14	3,5
50	222	1.97	50,0	13301	13301B	RNT-50-079	7.95	202	.18	4,5
		3.15	80,0	14000	14000B	RNT-50-110	11.02	280	.19	4,8
		1.18	30,0	14005	14005B	RNT-50-049	4.92	125	.28	7,2
		1.38	35,0	14010	14010B	RNT-50-059	5.90	150	.30	7,6
		2.24	57,0	14011	14011B	RNT-50-079-003	7.87	200
		2.87	73,0	14012	14012B	RNT-50-098	9.84	250
		3.50	89,0	14013	14013B	RNT-50-118	11.81	300
		3.54	90,0	14014	14014B	RNT-50-137	13.78	350

Standard color natural and UV black. Consult Heyco for heat-stabilized materials and colors.

Material		Nylon 6/6, Nylon 6/6 UV Black
Flammability Rating		94V-2
Temperature Range		Nylon 6/6 and Nylon 6/6 UV Black: -40°F (-40°C) to 185°F (85°C)

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
