| PART SPECIFICATIONS | PART NO. |

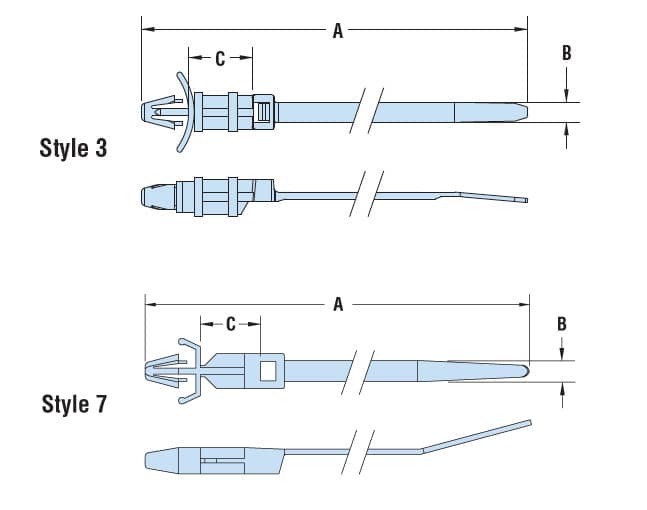

DESCRIPTION | PART DIMENSIONS | STYLE | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tensile Strength |
Max.
Bundle Diameter |
Natural | UV Black |
Heat Stabilized UV Black |
A Length |
B Width |
C Spacer Height |
Panel
Thickness Range |
Mounting Hole Dia. |
|||||||||
| Lbs. | N | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | |||||
Tension Wings, Standoff |
||||||||||||||||||
| 18 | 80 | .75 | 19,1 | 13262 | 13262B | - | PMST-18-050-156 | 5.04 | 128 | .10 | 2,5 | .24 | 6,1 | .031-.078 | 0,8-2,0 | .156 | 4,0 | 3 |
| 40 | 178 | 1.38 | 35,0 | 13267 | 13267B | - | PMST-40-066-197 | 6.69 | 170 | .14 | 3,6 | .51 | 13,0 | .031-.078 | 0,8-2,0 | .197 | 5,0 | |
| 1.25 | 31,8 | 13268 | 13268B | - | PMST-40-068-187 | 6.81 | 173 | .14 | 3,6 | .78 | 19,8 | .031-.078 | 0,8-2,0 | .187 | 4,7 | |||
| 50 | 222 | .98 | 25,0 | 13269 | - | 13269B | PMST-50-063-259 | 6.34 | 161 | .19 | 4,8 | .54 | 13,7 | .027-.118 | 0,7-3,0 | .259 | 6,6 | 7 |
Standard color natural and UV Black. Consult Heyco for other colors.
| Material | Nylon 6/6, Nylon 6/6 UV Black, or Nylon 6/6 Heat Stabilized/UV Black |
|---|---|
| Flammability Rating | 94V-2 |
| Temperature Range | Nylon 6/6 and Nylon 6/6 UV Black: -40°F (-40°C) to 185°F (85°C) Nylon 6/6 Heat Stabilized/UV Black: -40°F (-40°C) to 221°F (105°C) |
