| PART SPECIFICATIONS | PART NO. | DESCRIPTION | PART DIMENSIONS | STYLE | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

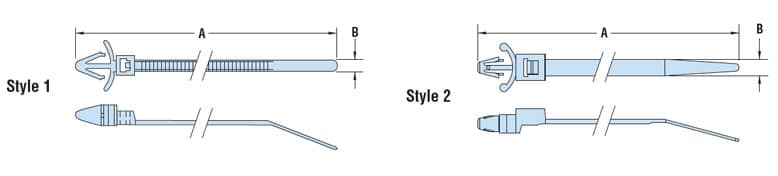

| Tensile Strength | Max. Bundle Diameter | Natural | UV Black | Heat Stabilized UV Black | A Length | B Width | C Spacer Height | Panel Thickness Range | Mounting Hole Dia. | |||||||||
| Lbs. | N | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | |||||
Tension Wings |
||||||||||||||||||
| 40 | 178 | 1.42 | 36,0 | - | - | 3907 | PMWS-155-HSB | 6.23 | 158 | .14 | 3,5 | - | - | .031-.093 | 0,8-2,4 | .187 | 4,7 | 1 |
| 50 | 222 | 1.57 | 40,0 | 13254 | 13254B | - | PMT-50-070 | 7.09 | 180 | .19 | 4,8 | - | - | .031-.093 | 0,8-2,4 | .187 | 4,7 | 2 |
| 1.75 | 44,5 | 3904 | 3905 | 3903B | PMT 150 | 8.00 | 203 | .19 | 4,8 | - | - | .000-.125 | 0,0-3,2 | .250 | 6,4 | 1 | ||
| Material | Nylon 6/6, Nylon 6/6 UV Black, or Nylon 6/6 Heat Stabilized/UV Black |
|---|---|
| Flammability Rating | 94V-2 |
| Temperature Range | Nylon 6/6 and Nylon 6/6 UV Black: -40°F (-40°C) to 185°F (85°C) Nylon 6/6 Heat Stabilized/UV Black: -40°F (-40°C) to 221°F (105°C) |
