| PART SPECIFICATIONS | PART NO. |
DESCRIPTION | PART DIMENSIONS | STYLE | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tensile Strength |
Max.
Bundle Diameter |
Natural | UV Black |
Heat Stabilized UV Black |
A Length |
B Width |
C Spacer Height |
Panel
Thickness Range |
Mounting Hole Dia. |
|||||||||
| Lbs. | N | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | |||||

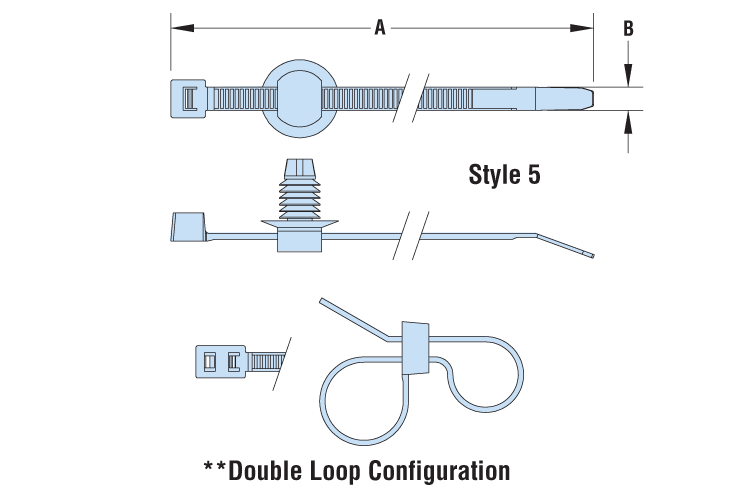

Blind Mount - 2PC* |
||||||||||||||||||
| 50 | 222 | 2.13 | 54,1 | 13285 | 13285B | 23285B | PMBMT-50-079-5 | 7.87 | 200 | .19 | 4,8 | - | - | .031-.197 | 0,8-5,0 | .177-.197 | 4,5-5,0 | 5 |
| 13286 | 13286B | 23286B | PMBMT-50-079-7 | 7.87 | 200 | .19 | 4,8 | - | - | .031-.276 | 0,8-7,0 | .256-.276 | 6,5-7,0 | |||||
| - | 13281B** | - | PMBMDLT-50-079-7 | 8.66 | 220 | .19 | 4,8 | - | - | .031-.276 | 0,8-7,0 | .256-.276 | 6,5-7,0 | ** | ||||
Standard color natural and UV Black. Consult Heyco for other colors.
* Discrete blind mount fastener is pre-assembled to the Nytye.
** 2-Piece Blind Mount with Double Loop Cable Ties, click here for other Double Loop Cable Ties
| Material | Nylon 6/6, Nylon 6/6 UV Black, or Nylon 6/6 Heat Stabilized/UV Black |
|---|---|
| Flammability Rating | 94V-2 |
| Temperature Range | Nylon 6/6 and Nylon 6/6 UV Black: -40°F (-40°C) to 185°F (85°C) Nylon 6/6 Heat Stabilized/UV Black: -40°F (-40°C) to 221°F (105°C) |
