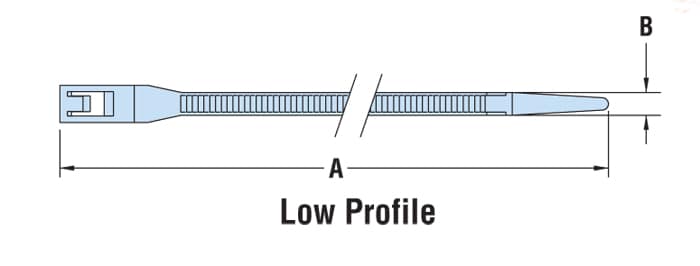

| PART SPECIFICATIONS | PART NO. | DESCRIPTION | PART DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Tensile Strength | Max. Bundle Diameter | Natural | UV Black | A Length | B Width | |||||
| Lbs. | N | in. | mm. | in. | mm. | in. | mm. | |||
Low Profile
|
||||||||||
| 18 | 80 | .98 | 25,0 | 14110 | 14110B | LPNT-18-043 | 4.33 | 110 | .10 | 2,5 |
| 1.57 | 40,0 | 14111 | 14111B | LPNT-18-061 | 6.10 | 155 | ||||
| 2.00 | 51,0 | 14112 | 14112B | LPNT-18-080 | 8.07 | 205 | ||||
| 40 | 178 | 1.29 | 33,0 | 14113 | 14113B | LPNT-40-059 | 5.90 | 150 | .14 | 3,6 |
| 2.00 | 51,0 | 14114 | 14114B | LPNT-40-080 | 8.07 | 205 | ||||
| 3.03 | 77,0 | 14115 | 14115B | LPNT-40-110 | 11.02 | 280 | ||||
| 4.05 | 103,0 | 14116 | 14116B | LPNT-40-145 | 14.56 | 370 | ||||
| 50 | 222 | 2.04 | 52,0 | 14117 | 14117B | LPNT-50-080 | 8.04 | 205 | .18 | 4,6 |
| 2.67 | 68,0 | 14118 | 14118B | LPNT-50-100 | 10.04 | 255 | ||||
| 2.99 | 76,0 | 14119 | 14119B | LPNT-50-110 | 11.02 | 280 | ||||
| 4.05 | 103,0 | 14120 | 14120B | LPNT-50-145 | 14.56 | 370 | ||||
| 120 | 534 | 3.03 | 77,0 | 14121 | 14121B | LPNT-120-110 | 11.02 | 280 | .30 | 7,6 |
| 4.05 | 103,0 | 14122 | 14122B | LPNT-120-145 | 14.56 | 370 | ||||
| Material | Nylon 6/6, Nylon 6/6 UV Black | |
|---|---|---|
| Flammability Rating | 94V-2 | |
| Temperature Range | Nylon 6/6 and Nylon 6/6 UV Black: -40°F (-40°C) to 185°F (85°C) |
