| PART SPECIFICATIONS | PART NO. |
DESCRIPTION | PART DIMENSIONS | Marking Area W x L |
Style | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tensile Strength |
Max. Bundle Diameter |
Natural | UV Black |

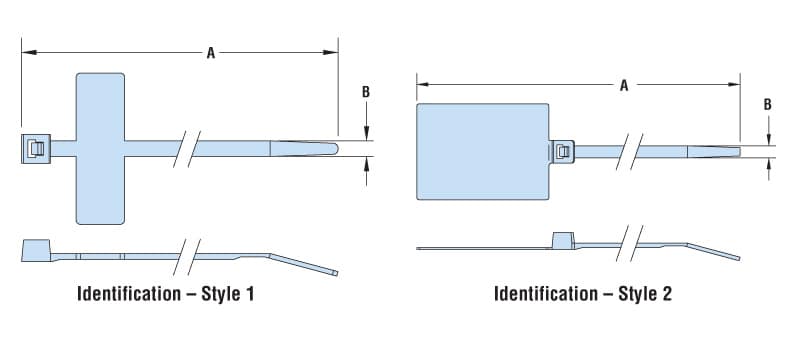

A Length |
B Width |
||||||||||
| Lbs. | N | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||||
Identification |
|||||||||||||||
| 18 | 80 | .87 | 22,0 | 13316 | - | NTID-18-039 | 3.94 | 100 | .10 | 2,5 | .31 | 8,0 | 1.00 | 25,4 | 1 |
| 13317 | - | NTID-18-053 | 5.28 | 134,1 | .10 | 2,5 | .80 | 20,2 | 1.09 | 27,8 | 2 | ||||
Standard color natural and UV Black. Consult Heyco for other colors.
| Material | Nylon 6/6, Nylon 6/6 UV Black | |
|---|---|---|
| Flammability Rating | 94V-2 | |
| Temperature Range | Nylon 6/6 and Nylon 6/6 UV Black: -40°F (-40°C) to 185°F (85°C) |
