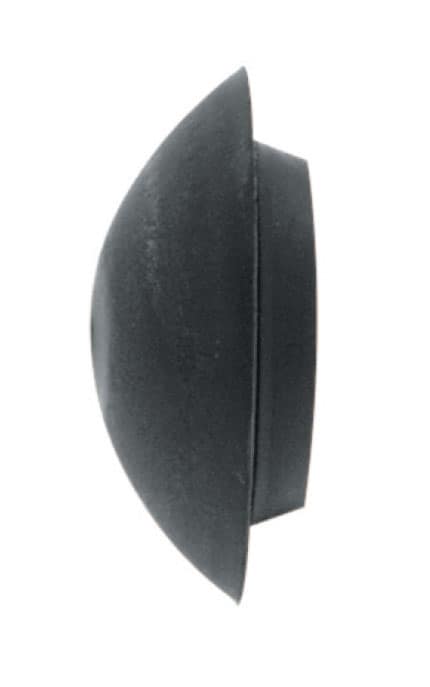

Heyco® V-0 Liquid Tight Hole Plugs – Standard 85 Durometer

Maximum Panel Thickness .125″ (3,2 mm) Mounting Hole Diameter Range: .500″ (12,7 mm) to 1.375″ (34,9 mm)

Specifications

Part number and specification

MOUNTING HOLE DIAMETER		PART NO.	DESCRIPTION	PART DIMENSIONS

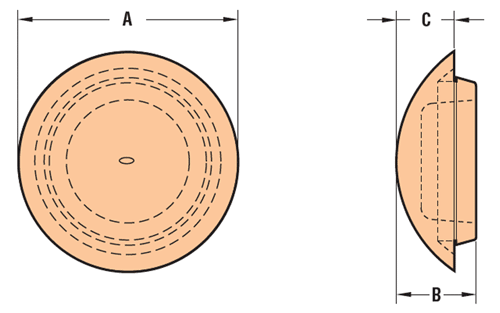

MOUNTING HOLE DIAMETER		Black		A Head Diameter		B Overall Height		C Head Thickness
in.	mm.	Black		in.	mm.	in.	mm.	in.	mm.
.500	12,7	3830	KOS LT 500	.91	23,1	.45	11,4	.29	7,4
.625	15,9	3834	KOS LT 625	1.03	26,2	.47	11,9	.31	7,9
.750	19,1	3831	KOS LT 750	1.15	29,2	.51	13,0	.35	8,9
.875	22,2	3833	KOS LT 1/2	1.23	32,5	.50	13,5	.36	9,1
1.000	25,4	3832	KOS LT 1000	1.41	35,8	.56	14,2	.40	10,2
1.093	27,8	3835	KOS LT 3/4	1.53	38,6	.55	14,0	.40	10,2
1.375	34,9	3837	KOS LT 1	1.78	45,2	.57	14,5	.42	10,7

Available in black only.

Oil tight, rain tight, submersible.
UL certified for outdoor applications.
V0 Flammability rating.
Install with fingertip pressure (no tool required).
Multiple nominal sizes fit .500″ (12,7 mm) to 1.000″ (25,4 mm) true size mounting holes.
Three trade sizes fit 1/2″ to 1″ knock-out holes.
Lock firmly in boxes from .030″ (0,8 mm) to .125″ (3,2 mm) thick.
True sizes are UL recognized under Underwriters’ Laboratories File E51579 and CSA certified by the Canadian Standards Association File 8919.
Trade sizes are UL listed under Underwriters’ Laboratories File E51579 and CSA certified by the Canadian Standards Association File 081067C. Now certified for NEMA 4 and 4X applications.

Material		TPE-Hardness 85 Shore A
Certifications	Trade Sizes (1/2, 3/4, 1)	Listed under Underwriters’ Laboratories File E51579
	Trade Sizes (1/2, 3/4, 1)	Certified by the Canadian Standards Association File 081067C
	True Sizes (all others)	Recognized under Underwriters’ Laboratories File E51579
	True Sizes (all others)	Certified by the Canadian Standards Association File 8919
Flammability Rating		94V-0
Temperature Range		-81°F (-60°C) to 275°F (135°C)
